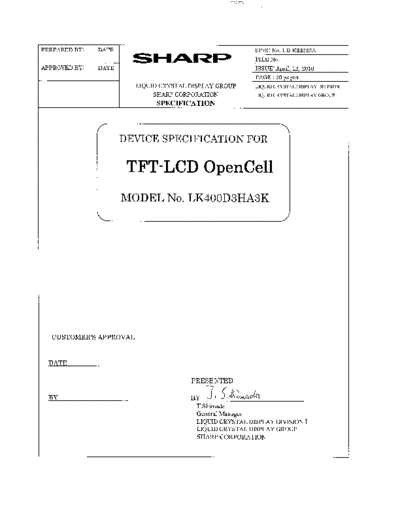

Image preview - the first page of the document



>> Download Panel_SHARP_LK400D3HA3K_0_[DS] documenatation <<

Text preview - extract from the document

                         RECORDS OF REVISION
   MODEL No. : LK400D3HA3K
   SPEC No. : LD-K22223A
                         REVISED
  DATE          NO.                PAGE                      SUMMARY                          NOTE
                           No.
2010.02.23   LD-K22223      -       -                             -                          1st Issue
2010.04.12 LD-K22223A      A       All Reformat of all pages                                 2nd Issue
                                    10    [Add]Scan Direction
                                          [Change]Optical calacteristics
                                    13
                                          Chromaticity ,Luminance uniformity
                                          [Change]Optical calacteristics[Note6]
                                    15
                                          Definition of white uniformity(5point -> 9point)

                                    15    [Add]Optical characteristics[Note7]
                                    16    [Add]Reliability test item
                                                                                                      LD-K22223A-1
1     Application
    This specification applies to the color 40.0" TFT-LCD Open Cell LK400D3HA3K

* This specification is proprietary products of SHARP CORPORATION ("SHARP") and include materials protected
under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in any form or by any
means, electronic or mechanical, for any purpose, in whole or in part, without the express written permission of
SHARP.

* In case of using the device for applications such as control and safety equipment for transportation (aircraft, trains,
   automobiles, etc.), rescue and security equipment and various safety related equipment which require higher
   reliability and safety, take into consideration that appropriate measures such as fail-safe functions and redundant
   system design should be taken.

* Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
  telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment for
  life support.

* SHARP assumes no responsibility for any damage resulting from the use of the device that does not comply with
   the instructions and the precautions specified in these technical literature.

* Contact and consult with a SHARP sales representative for any questions about this device.

2     Overview
  This Open Cell is a color active matrix LCD Open-Cell incorporating amorphous silicon TFT (Thin Film Transistor).
It is composed of a color TFT-LCD panel, driver ICs and Source PWB. The following content can be achieved in
using LK0DZ1C0115 (C-PWB) and LK0DZ1C0114 (FPC) that SHARP specifies. Graphics and texts can be
displayed on a 1920
