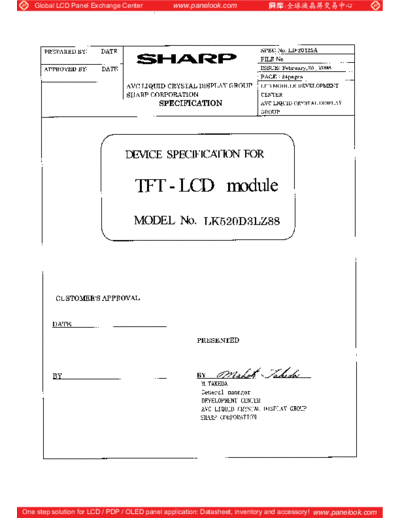

Image preview - the first page of the document
Panel_SHARP_LK520D3LZ88_1_[DS]


>> Download Panel_SHARP_LK520D3LZ88_1_[DS] documenatation <<

Text preview - extract from the document
   Global LCD Panel Exchange Center           www.panelook.com




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center              www.panelook.com




                                RECORDS OF REVISION
         MODEL No. : LK520D3LZ88
         SPEC No. : LD-20125A
                              REVISED
       SPEC No.     DATE                PAGE                     SUMMARY                     NOTE
                                No.
      LD-20125    2008.1.17                                                                1st Issue
                                         2     Changed the Mating LVDS transmitter
                                         20    Changed the Lot No Label
                  2008.2.25     A                                                          2nd Issue
                                                                  (Identification Code)

                                         21    Added comment about UL label




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center                      www.panelook.com

                                                                                                                 LD- 20125A-1
         1. Application
           This specification applies to the color 52.0" TFT-LCD module LK520D3LZ88.

         * These technical literature are proprietary products of SHARP CORPORATION ("SHARP") and include materials
         protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in any form or by
         any means, electronic or mechanical, for any purpose, in whole or in part, without the express written permission of
         SHARP.

         * In case of using the device for applications such as control and safety equipment for transportation (aircraft, trains,
            automobiles, etc.), rescue and security equipment and various safety related equipment which require higher
            reliability and safety, take into consideration that appropriate measures such as fail-safe functions and redundant
            system design should be taken.

         * Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
           telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment for
           life support.

         * SHARP assumes no responsibility for any damage resulting from the use of the device that does not comply with
            the instructions and the precautions specified in these specification.

         * Contact and consult with a SHARP sales representative for any questions about this device.

         2. Overview
           This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is
         composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit, inverter circuit and back light
         system etc. Graphics and texts can be displayed on a 1920RGB1080 dots panel with one billion colors by
         using LVDS (Low Voltage Differential Signaling) to interface, +12V of DC supply voltages.
            This module also includes the DC/AC inverter to drive the CCFT. (+24V of DC supply voltage)
            And in order to improve the response time of LCD, this module applies the Over Shoot driving (O/S driving)
         technology for the control circuit .In the O/S driving technology, signals are being applied to the Liquid Crystal
         according to a pre-fixed process as an image signal of the present frame when a difference is found between image
         signal of the previous frame and that of the current frame after comparing them.
            With this technology, image signals can be set so that liquid crystal response completes within one frame. As a
         result, motion blur reduces and clearer display performance can be realized.

         3. Mechanical Specifications
                             Parameter                             Specifications                           Unit
                                                     132.174     Diagonal                                    cm
                  Display size
                                                     52.0     Diagonal                                      inch
                  Active area                        1152.0(H) x 648.0 (V)                                  mm
                                                     1920(H) x 1080(V)
                  Pixel Format                                                                             pixel
                                                        1pixel = R + G + B dot
                  Pixel pitch                        0.600(H) x 0.600 (V)                                   mm
                  Pixel configuration                R, G, B vertical stripe
                  Display mode                       Normally black
                  Unit Outline Dimensions (*1)       1219.0(W) x 706.7(H) x 64.6(D)                         mm
                  Mass                               21.0 r1.0                                              kg
                                                     Anti glare
                  Surface treatment
                                                     Hard coating: 2H
                (*1) Outline dimensions are shown in Fig.1 (excluding protruding portion)




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center                     www.panelook.com

                                                                                                            LD- 20125A-2

         4. Input Terminals
         4.1.    TFT panel driving
                CN1 (Interface signals and +12V DC power supply) (Shown in Fig.1)
                   Using connector                   : FI-RE51S-HF (Japan Aviation Electronics Ind. , Ltd.)
                   Mating connector                  : FI-RE51HL, FI-RE51CL (Japan Aviation Electronics Ind. , Ltd.)
                   Mating LVDS transmitter           : THC63LVD1023 or equivalent device            A
                Pin No.     Symbol                                   Function                                   Remark
                   1          GND
                   2        Reserved     It is required to set non-connection(OPEN)                     Pull up 3.3V
                   3        Reserved     It is required to set non-connection(OPEN)                     Pull up 3.3V
                   4        Reserved     It is required to set non-connection(OPEN)                     Pull up 3.3V
                   5        Reserved     It is required to set non-connection(OPEN)                     Pull down : (GND)
                   6        Reserved     It is required to set non-connection(OPEN)                     Pull down : (GND)
                   7       SELLVDS Select LVDS data order [Note1,2]                                     Pull down : (GND)
                   8        Reserved     It is required to set non-connection(OPEN)                     Pull down : (GND)
                   9         O/S set     O/S operation setting H:O/S_ON, L:O/S_OFF [Note 3]             Pull up 3.3V
                  10        FRAME        Frame frequency setting       1:60Hz 0:50Hz                    Pull down :GND
                  11          GND
                  12         AIN0-       Aport (-)LVDS CH0 differential data input
                  13         AIN0+       Aport (+)LVDS CH0 differential data input
                  14         AIN1-       Aport (-)LVDS CH1 differential data input
                  15         AIN1+       Aport (+)LVDS CH1 differential data input
                  16         AIN2-       Aport (-)LVDS CH2 differential data input
                  17         AIN2+       Aport (+)LVDS CH2 differential data input
                  18          GND
                  19         ACK-        Aport LVDS Clock signal(-)
                  20         ACK+        Aport LVDS Clock signal(+)
                  21          GND
                  22         AIN3-       Aport (-)LVDS CH3 differential data input
                  23         AIN3+       Aport (+)LVDS CH3 differential data input
                  24         AIN4-       Aport (-)LVDS CH4 differential data input
                  25         AIN4+       Aport (+)LVDS CH4 differential data input
                  26          GND
                  27          GND
                  28         BIN0-       Bport (-)LVDS CH0 differential data input
                  29         BIN0+       Bport (+)LVDS CH0 differential data input
                  30         BIN1-       Bport (-)LVDS CH1 differential data input
                  31         BIN1+       Bport (+)LVDS CH1 differential data input
                  32         BIN2-       Bport (-)LVDS CH2 differential data input
                  33         BIN2+       Bport (+)LVDS CH2 differential data input
                  34          GND
                  35         BCK-        Bport LVDS Clock signal(-)
                  36         BCK+        Bport LVDS Clock signal(+)
                  37          GND
                  38         BIN3-       Bport (-)LVDS CH3 differential data input
                  39         BIN3+       Bport (+)LVDS CH3 differential data input
                  40         BIN4-       Bport (-)LVDS CH4 differential data input
                  41         BIN4+       Bport (+)LVDS CH4 differential data input
                  42          GND
                  43          GND
                  44          GND




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center                    www.panelook.com

                                                                                                  LD- 20125A-3
               45         GND
               46         GND
               47         VCC           +12V Power Supply
               48         VCC           +12V Power Supply
               49         VCC           +12V Power Supply
               50         VCC           +12V Power Supply
               51         VCC           +12V Power Supply
            [note]GND of a liquid crystal panel drive part has connected with a module chassis.

             [Note 1]The equivalent circuit figure of the terminal

                                                               100

                     Terminal


                                                        10K




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center                  www.panelook.com

                                                                                                          LD- 20125A-4

             [Note 2] LVDS Data order
                                     SELLVDS
                 Data          L(GND) or Open                  H(3.3V)

                  TA0                  R2                     R4
                  TA1                  R3                     R5
                  TA2                  R4                     R6
                  TA3                  R5                     R7
                  TA4                  R6                     R8
                  TA5                  R7                     R9(MSB)
                  TA6                  G2                     G4
                  TB0                  G3                     G5
                  TB1                  G4                     G6
                  TB2                  G5                     G7
                  TB3                  G6                     G8
                  TB4                  G7                     G9(MSB)
                  TB5                  B2                     B4
                  TB6                  B3                     B5
                  TC0                  B4                     B6
                  TC1                  B5                     B7
                  TC2                  B6                     B8
                  TC3                  B7                     B9(MSB)
                  TC4                  NA                     NA
                  TC5                  NA                     NA
                  TC6                DE(*)                    DE(*)
                  TD0                  R8                     R2
                  TD1               R9(MSB)                   R3
                  TD2                  G8                     G2
                  TD3               G9(MSB)                   G3
                  TD4                  B8                     B2
                  TD5               B9(MSB)                   B3
                  TD6                  NA                     N/A
                  TE0               R0(LSB)                   R0(LSB)
                  TE1                  R1                     R1
                  TE2               G0(LSB)                   G0(LSB)
                  TE3                  G1                     G1
                  TE4               B0(LSB)                   B0(LSB)
                  TE5                  B1                     B1
                  TE6                  NA                     N/A
               NA: Not Available
               (*)Since the display position is prescribed   by the rise of DE(Display Enable)signal, please do not fix DE
               signal during operation at "High".




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center                 www.panelook.com

                                                                                           LD- 20125A-5
                                           A
         SELLVDS= Low (GND) or OPEN

                                                                  1 cycle
          ACK+,BCK+



          ACK
