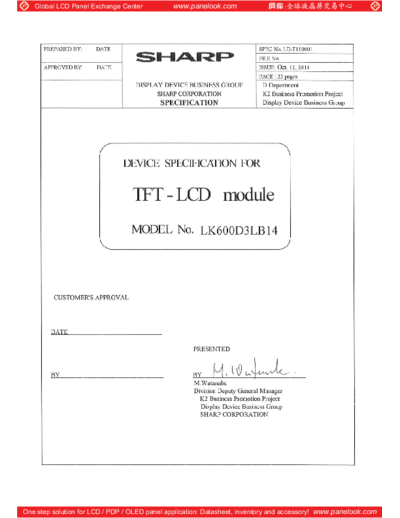

Image preview - the first page of the document
![Panel_SHARP_LK600D3LB14_0_[DS]](/pics/5eb079ecc1fdb.gif)
>> Download Panel_SHARP_LK600D3LB14_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
RECORDS OF REVISION
MODEL No. : LK600D3LB14
SPEC No. : LD-T110001
REVISED
SPEC No. DATE PAGE SUMMARY NOTE
No.
LD-T110001 Oct. 12, 2011 - - - 1st. Issue
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD-T110001-1
1. Application
This specification applies to the color 60.0" TFT-LCD module LK600D3LB14
* These specification sheets are proprietary products of SHARP CORPORATION ("SHARP") and include materials
protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in any form or by
any means, electronic or mechanical, for any purpose, in whole or in part, without the express written permission of
SHARP.
* In case of using the device for applications such as control and safety equipment for transportation (aircraft, trains,
automobiles, etc.), rescue and security equipment and various safety related equipment which require higher
reliability and safety, take into consideration that appropriate measures such as fail-safe functions and redundant
system design should be taken.
* Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment for
life support.
* SHARP assumes no responsibility for any damage resulting from the use of the device that does not comply with
the instructions and the precautions specified in these technical literature.
* Contact and consult with a SHARP sales representative for any questions about this device.
*This module will cause high temperature depend on its super high brightness. It may cause an irreversible damage,
then it should be used in temperature controlled condition and atmosphere. (Refer to Chapter.5)
2. Overview
This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It
is composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit, inverter circuit and back
light system etc. Graphics and texts can be displayed on a 1920RGB1080 dots panel with one billion colors by
using 8bit+FRC LVDS (Low Voltage Differential Signaling) to interface, +12V of DC supply voltages.
This module also includes the LED PWB and LED DRIVER PWB to drive the LED.
And in order to improve the response time of LCD, this module applies the Over Shoot driving (O/S driving)
technology for the control circuit .In the O/S driving technology, signals are being applied to the Liquid Crystal
according to a pre-fixed process as an image signal of the present frame when a difference is found between image
signal of the previous frame and that of the current frame after comparing them.
With this technology, image signals can be set so that liquid crystal response completes within one frame. As a result,
motion blur reduces and clearer display performance can be realized.
This LCD module also adopts Double Frame Rate driving method including FRC (Frame Rate Control) function on
the control circuit. Therefore the input signal to this LCD module is Single Frame Rate (50Hz or 60Hz),
But the output is Double-Frame Rate (100Hz or 120Hz) picture (inserting the intermediate image which is generated
by the FRC).
With combination of these technologies, motion blur can be reduced and clearer display performance
can be realized.
3. Mechanical Specifications
Parameter Specifications Unit
152.496 Diagonal cm
Display size
60.0 Diagonal inch
Active area 1329.12(H) x 747.63 (V) mm
1920(H) x 1080(V)
Pixel Format pixel
1pixel = R + G + B dot
Pixel pitch 0.69225(H) x 0.69225 (V) mm
Pixel configuration R, G, B vertical stripe
Display mode Normally black
Unit Outline Dimensions (*1) 1380[W] x 790 [H] x 106.6 [D] mm
Mass 27s1.0 kg
Surface treatment Anti glare, low reflection coating
(*1) Outline dimensions are shown in Fig.1 (excluding protruding portion)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD-T110001-2
4. Input Terminals
4.1. TFT panel driving
CN1 (Interface signals and +12V DC power supply) (Shown in Fig.1)
Using connector : FI-RE51S-HF, or FI-REN51S2-HF (Japan Aviation Electronics Ind., Ltd.)
Mating connector : FI-RE51HL, FI-RE51CL (Japan Aviation Electronics Ind., Ltd.)
Pin No. Symbol Function Remark
1 GND
2 Reserved It is required to set non-connection(OPEN) Pull up 3.3V
3 Reserved It is required to set non-connection(OPEN) Pull up 3.3V
4 Reserved It is required to set non-connection(OPEN)
5 Reserved It is required to set non-connection(OPEN)
6 Reserved It is required to set non-connection(OPEN)
7 SELLVDS Select LVDS data order [Note 2] Pull up 3.3V [Note 1]
8 Reserved It is required to set non-connection(OPEN)
9 Reserved It is required to set non-connection(OPEN)
10 Reserved It is required to set non-connection(OPEN)
11 GND
12 AIN0- A port (-)LVDS CH0 differential data input
13 AIN0+ A port (+)LVDS CH0 differential data input
14 AIN1- A port (-)LVDS CH1 differential data input
15 AIN1+ A port (+)LVDS CH1 differential data input
16 AIN2- A port (-)LVDS CH2 differential data input
17 AIN2+ A port (+)LVDS CH2 differential data input
18 GND
19 ACK- A port LVDS Clock signal(-)
20 ACK+ A port LVDS Clock signal(+)
21 GND
22 AIN3- A port (-)LVDS CH3 differential data input
23 AIN3+ A port (+)LVDS CH3 differential data input
24 AIN4- A port (-)LVDS CH4 differential data input
25 AIN4+ A port (+)LVDS CH4 differential data input
26 GND
27 GND
28 BIN0- B port (-)LVDS CH0 differential data input
29 BIN0+ B port (+)LVDS CH0 differential data input
30 BIN1- B port (-)LVDS CH1 differential data input
31 BIN1+ B port (+)LVDS CH1 differential data input
32 BIN2- B port (-)LVDS CH2 differential data input
33 BIN2+ B port (+)LVDS CH2 differential data input
34 GND
35 BCK- B port LVDS Clock signal(-)
36 BCK+ B port LVDS Clock signal(+)
37 GND
38 BIN3- B port (-)LVDS CH3 differential data input
39 BIN3+ B port (+)LVDS CH3 differential data input
40 BIN4- B port (-)LVDS CH4 differential data input
41 BIN4+ B port (+)LVDS CH4 differential data input
42 GND
43 GND
44 GND
45 GND
46 GND
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD-T110001-3
47 VCC +12V Power Supply
48 VCC +12V Power Supply
49 VCC +12V Power Supply
50 VCC +12V Power Supply
51 VCC +12V Power Supply
[Note] GND of a liquid crystal panel drive part has connected with a module chassis.
[Note 1]The equivalent circuit figure of the terminal
3.3V
10.0K
100
Terminal
[Note 2] LVDS Data order
SELLVDS
Data L(GND) H(3.3V) or Open
[VESA] [JEIDA]
TA0 R0(LSB) R4
TA1 R1 R5
TA2 R2 R6
TA3 R3 R7
TA4 R4 R8
TA5 R5 R9(MSB)
TA6 G0(LSB) G4
TB0 G1 G5
TB1 G2 G6
TB2 G3 G7
TB3 G4 G8
TB4 G5 G9(MSB)
TB5 B0(LSB) B4
TB6 B1 B5
TC0 B2 B6
TC1 B3 B7
TC2 B4 B8
TC3 B5 B9(MSB)
TC4 NA NA
TC5 NA NA
TC6 DE(*) DE(*)
TD0 R6 R2
TD1 R7 R3
TD2 G6 G2
TD3 G7 G3
TD4 B6 B2
TD5 B7 B3
TD6 N/A N/A
TE0 R8 R0(LSB)
TE1 R9(MSB) R1
TE2 G8 G0(LSB)
TE3 G9(MSB) G1
TE4 B8 B0(LSB)
TE5 B9(MSB) B1
TE6 N/A N/A
NA: Not Available
(*)Since the display position is prescribed by the rise of DE (Display Enable) signal,
please do not fix DE signal during operation at"High".
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD-T110001-4
SELLVDS= Low (GND) [VESA Mode]
In case of VESA Mode,10-bit signal must be input
1 cycle
ACK+,BCK+
