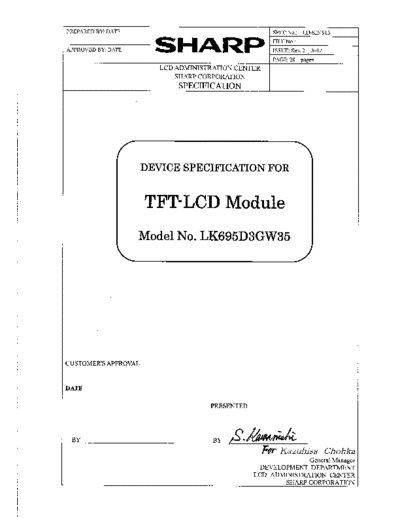

Image preview - the first page of the document



>> Download Panel_SHARP_LK695D3GW35_0_[DS] documenatation <<

Text preview - extract from the document

                          RECORDS OF REVISION
MODEL No. : LK695D3GW35
SPEC No. : LD-K24913
                       REVISED
  SPEC No.   DATE                PAGE   SUMMARY     NOTE
                         No.
LD-K24913 2012.9.21       -       -        -      1st ISSUE
                                                                                                           LD-K24913-1

1.     Application
      This specification applies to the color 69.5" TFT-LCD Module LK695D3GW35.

      * This specification is proprietary products of SHARP CORPORATION ("SHARP") and includes materials
     protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in any form or
     by any means, electronic or mechanical, for any purpose, in whole or in part, without the express written
     permission of SHARP.

       * In case of using the device for applications such as control and safety equipment for transportation (aircraft,
     trains, automobiles, etc.), rescue and security equipment and various safety related equipment which require
     higher reliability and safety, take into consideration that appropriate measures such as fail-safe functions and
     redundant system design should be taken.

       * Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
     telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment for
     life support.

      * SHARP assumes no responsibility for any damage resulting from the use of the device that does not comply
     with the instructions and the precautions specified in these specification.

      * Contact and consult with a SHARP sales representative for any questions about this device.

2. Overview
   This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It
 is composed of a color TFT-LCD panel, driver ICs, LED back light system etc.

  This module includes the LED backlight system. (Typ. +183.1V of DC supply voltage)
  This module does NOT include Control PWB (CPWB) for LCD panel driving.
  However, with combination of components including CPWB, shown as below that SHARP specifies, module's
 specification becomes same as LK695D3LB58's one, and graphics and texts can be displayed on a
 1920
