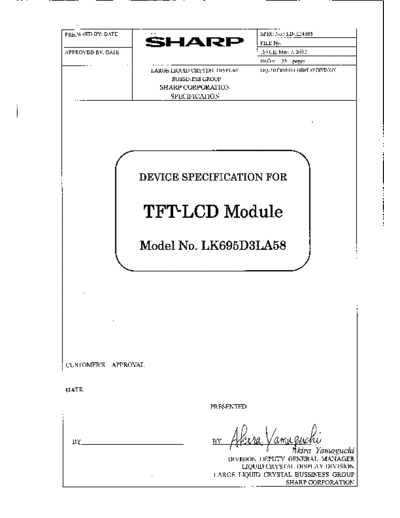

Image preview - the first page of the document



>> Download Panel_SHARP_LK695D3LA58_1_[DS] documenatation <<

Text preview - extract from the document

                         RECORDS OF REVISION
MODEL No. : LK695D3LA58
SPEC No. : LD-K24305
                          REVISED
  SPEC No.     DATE               PAGE     SUMMARY    NOTE
                            No.
                                                     st
 LD-K24305    2012.3.7       -      -  -             1 ISSUE
                                                                                                          LD-K24305-1
1. Application
  This specification is applied to the color 69.5" TFT-LCD module LK695D3LA58.

* This specification is proprietary products of SHARP CORPORATION ("SHARP") and includes materials protected
  under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in any form or by any
  means, electronic or mechanical, for any purpose, in whole or in part, without the express written permission of
  SHARP.

* In case of using the device for applications such as control and safety equipment for transportation (aircraft, trains,
   automobiles, etc.), rescue and security equipment and various safety related equipment which require higher
   reliability and safety, take into consideration that appropriate measures such as fail-safe functions and redundant
   system design should be taken.

* Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
  telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment for
  life support.

* SHARP assumes no responsibility for any damage resulting from the use of the device that does not comply with
   the instructions and the precautions specified in these specification.

* Contact and consult with a SHARP sales representative for any questions about this device.

2. Overview
   This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It
is composed of a color TFT-LCD panel, driver ICs, control circuit, LED driver circuit, and edge-light LED system etc.
Graphics and texts can be displayed on a 1920
