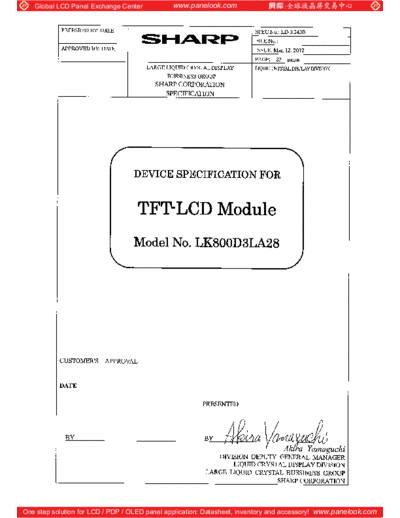

Image preview - the first page of the document



>> Download Panel_SHARP_LK800D3LA28_2_[DS] documenatation <<

Text preview - extract from the document

   Global LCD Panel Exchange Center           www.panelook.com




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center           www.panelook.com



                                    RECORDS OF REVISION
         MODEL No. : LK800D3LA28
         SPEC No. : LD-K24301
                                   REVISED
           SPEC No.     DATE               PAGE                 SUMMARY                     NOTE
                                     No.
          LD-K24301    2012.3.12      -      -  -                                         1st ISSUE




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center                     www.panelook.com

                                                                                                                  LD-K24301-1
         1. Application
            This technical literature applies to the color 80.0" TFT-LCD Module LK800D3LA28.

            * This technical literature is proprietary products of SHARP CORPORATION ("SHARP") and includes
           materials protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in
           any form or by any means, electronic or mechanical, for any purpose, in whole or in part, without the express
           written permission of SHARP.

             * In case of using the device for applications such as control and safety equipment for transportation (aircraft,
           trains, automobiles, etc.), rescue and security equipment and various safety related equipment which require
           higher reliability and safety, take into consideration that appropriate measures such as fail-safe functions and
           redundant system design should be taken.

             * Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
           telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment for
           life support.

            * SHARP assumes no responsibility for any damage resulting from the use of the device that does not comply
           with the instructions and the precautions specified in these technical literature.

            * Contact and consult with a SHARP sales representative for any questions about this device.

         2. Overview

            This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It
          is composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit, LED driver circuit and
          back light system etc. Graphics and texts can be displayed on a 1920
