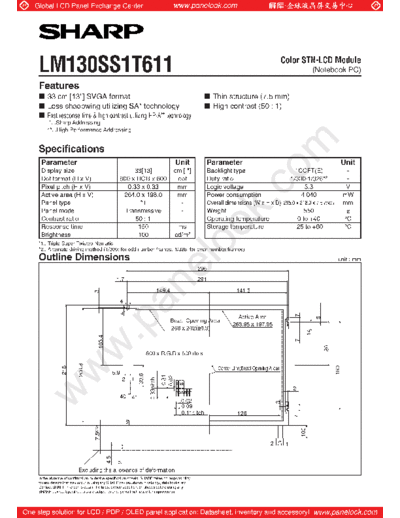

Image preview - the first page of the document



>> Download Panel_SHARP_LM130SS1T611_1_[DS] documenatation <<

Text preview - extract from the document

   Global LCD Panel Exchange Center                                                                www.panelook.com


                                                                                                                                                                    New Product




    LM130SS1T611                                                                                                                                         Color STN-LCD Module
                                                                                                                                                                             (Notebook PC)

    Features
    s 33 cm [13"] SVGA format                                                                                    s Thin structure (7.5 mm)
    s Less shadowing utilizing SA* technology                                                                    s High contrast (50 : 1)
    s Fast response time & high contrast utilizing HP-A** technology
          *...Sharp Addressing
         **...High Performance Addressing


    Specifications
     Parameter                                                                                     Unit            Parameter                                                                 Unit
     Display size                                             33[13]                               cm [ "]         Backlight type                      1CCFT(E)                               -
     Dot format (H x V)                                  800 x RGB x 600                            dot            Duty ratio                        1/300.1/328*2                            -
     Pixel pitch (H x V)                                    0.33 x 0.33                             mm             Logic voltage                            3.3                               V
     Active area (H x V)                                  264.0 x 198.0                             mm             Power consumption                      4 040                              mW
     Panel type                                                  *1                                  -             Overall dimensions (W x H x D) 295.0 x 218.0 x 7.5 (MAX.)                 mm
     Panel mode                                            Transmissive                              -             Weight                                   550                               g
     Contrast ratio                                            50 : 1                                -             Operating temperature                 0 to +40
