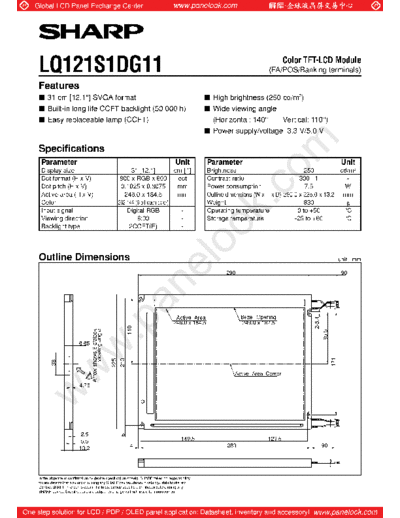

Image preview - the first page of the document
Panel_SHARP_LQ121S1DG11_0_[DS]


>> Download Panel_SHARP_LQ121S1DG11_0_[DS] documenatation <<

Text preview - extract from the document
   Global LCD Panel Exchange Center                                                         www.panelook.com


                                                                                                                                             Under Development




    LQ121S1DG11                                                                                                                            Color TFT-LCD Module
                                                                                                                                   (FA/POS/Banking terminals)

    Features
    s 31 cm [12.1"] SVGA format                                                                         s High brightness (250 cd/m2)
    s Built-in long life CCFT backlight (50 000 h)                                                      s Wide viewing angle
    s Easy replaceable lamp (CCFT)                                                                        (Horizontal: 140
