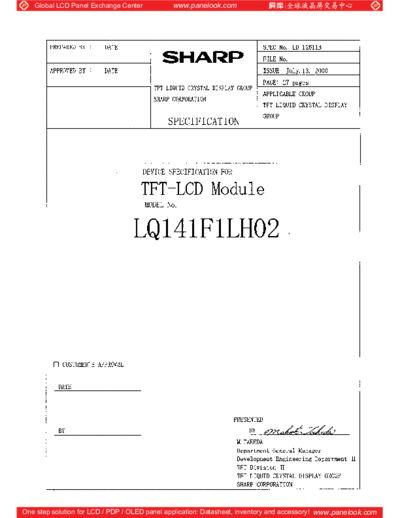

Image preview - the first page of the document
Panel_SHARP_LQ141F1LH02_0_[DS]


>> Download Panel_SHARP_LQ141F1LH02_0_[DS] documenatation <<

Text preview - extract from the document
   Global LCD Panel Exchange Center           www.panelook.com




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center           www.panelook.com




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center                    www.panelook.com




           These specification sheets are the proprietary product of SHARP CORPORATION("SHARP) and include
           materials protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in
           any form or by any means, electronic or mechanical, for any purpose, in whole or in part, without the express
           written permission of SHARP.


           The device listed in these specification sheets was designed and manufactured for use in OA equipment.


           In case of using the device for applications such as control and safety equipment for transportation (aircraft,
           trains, automobiles, etc. ), rescue and security equipment and various safety related equipment which require
           higher reliability and safety, take into consideration that appropriate measures such as fail-safe functions and
           redundant system design should be taken.


           Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
           telecommunication equipment(trunk lines), nuclear power control equipment and medical or other equipment
           for life support.


           SHARP assumes no responsibility for any damage resulting from the use of the device which does not comply
           with the instructions and the precautions specified in these specification sheets.


           Contact and consult with a SHARP sales representative for any questions about this device.




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center                      www.panelook.com



           1. Application
                This specification applies to a color TFT-LCD module, LQ141F1LH02.


           2. Overview
                This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film
           Transistor). This module is based on the standards of SPWG(Standard Panels Working Group).
           It is composed of a color TFT-LCD panel, driver ICs, control circuit and power supply circuit and a backlight
           unit. Graphics and texts can be displayed on a 1400 3             dots panel with 262,144 colors by
           using LVDS (Low Voltage Differential Signaling) to interface and supplying +3.3V DC supply voltage for
           TFT-LCD panel driving and supply voltage for backlight.
           The TFT-LCD panel used for this module has very high aperture ratio. A low-reflection and higher-color-
           saturation type color filter is also used for this panel. Therefore, high-brightness and high-contrast image,
           which is suitable for the multimedia use, can be obtained by using this module.
                Optimum viewing direction is 6 o'clock.
                Backlight-driving DC/AC inverter is built in this module.
           [Features]
                    1) High aperture panel ; high-brightness or low power consumption.
                    2) Brilliant and high contrast image.
                    3) Small footprint and thin shape.
                    4) Light weight.


           3. Mechanical Specifications
                         Parameter                             Specifications                  Unit
                 Display size                       36 (14.1") Diagonal                         cm
                 Active area                        285.6 (H) 214.2 (V)                        mm
                 Pixel format                       1400 (H) 1050 (V)                          pixel
                                                    (1 pixel = R+G+B dots)
                 Pixel pitch                        0.204(H) 0.204 (V)                         mm
                 Pixel configuration                R,G,B vertical stripe
                 Display mode                       Normally white
                 Unit outline dimensions *1         299.0(W)    228.0(H) 6.4max.(D)            mm
                 Mass *2                            555 10                                       g
                 Surface treatment                  Anti-glare and hard-coating 2H
                                                    (Haze value = 25)
                *1.Note : excluding inverter unit and backlight cables.
                *2.Note : including inverter unit
                Outline dimensions is shown in Fig.1




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center                   www.panelook.com



           4. Input Terminals
           4-1. TFT-LCD panel driving
                 CN1 (LVDS signals and +3.3V DC power supply)
                         Using connector : FI-XB30S-HF10 (JAE)
                         Corresponding connector : FI-X30M, or FI-X30H (JAE)
                 Pin No.          Symbol                            Function                        Remark
                    1              GND
                    2               Vcc         +3.3V power supply
                    3               Vcc         +3.3V power supply
                    4              Vedid        DCC +3.3V power supply
                    5               NC          Reserved
                    6             CLKedid       DDC Clock
                    7            DATAedid       DDC Data
                    8             R1IN0-        Receiver signal of A side pixels (-)                 LVDS
                    9             R1IN0+        Receiver signal of A side pixels (+)                 LVDS
                    10             GND
                    11            R1IN1-        Receiver signal of A side pixels (-)                 LVDS
                    12            R1IN1+        Receiver signal of A side pixels (+)                 LVDS
                    13             GND
                    14            R1IN2-        Receiver signal of A side pixels (-)                 LVDS
                    15            R1IN2+        Receiver signal of A side pixels (+)                 LVDS
                    16             GND
                    17            CK1IN-        Clock signal of A side pixels (-)                    LVDS
                    18            CK1IN+        Clock signal of A side pixels (+)                    LVDS
                    19             GND
                    20            R2IN0-        Receiver signal of B side pixels (-)                 LVDS
                    21            R2IN0+        Receiver signal of B side pixels (+)                 LVDS
                    22             GND
                    23            R2IN1-        Receiver signal of B side pixels (-)                 LVDS
                    24            R2IN1+        Receiver signal of B side pixels (+)                 LVDS
                    25             GND
                    26            R2IN2-        Receiver signal of B side pixels (-)                 LVDS
                    27            R2IN2+        Receiver signal of B side pixels (+)                 LVDS
                    28             GND
                    29            CK2IN-        Clock signal of B side pixels (-)                    LVDS
                    30            CK2IN+        Clock signal of B side pixels (+)                    LVDS
                    Note 1      Relation between LVDS signals and actual data shows below section (4-2).
                    Note 2      The shielding case is connected with signal GND




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
                                          Global LCD Panel Exchange Center           www.panelook.com




Interface block diagram
             Using receiver   THC63LVDF64A (THINE) Corresponding Transmitter            THC63LVDM63A (THINE , DS90C363,DS90C383(National semiconductor




                              "    "




                                       One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center                    www.panelook.com



         4-3. Inverter connector pin assign
              CN3 : (Inverter signals and Inverter Power Supply)
              Using connector : WR-L16SB-VF-HD2-1 (JAE)
              Corresponding connector: WR-KL16P-VF (JAE)
                  Pin no.           Symbol                                    Function
                    1,2,4               IN           Inverter power supply voltage
                    3,5,6                            Gnd
                     7                               Base of Brightness control voltage
                     8                               Brightness control IC supply voltage
                     9                               Brightness control serial data signal
                     10                              Brightness control serial clock signal
                     11                              Backlighgt on/off signal
                     12                              This is electrically opened
                     13                              Panel identity bit3 =1
                     14                              Panel identity bit2 =0
                     15                              Panel identity bit1 =0
                     16                              Panel identity bit0 =0


         5. Absolute Maximum Ratings
                            Parameter               Symbol       Condition             Ratings            Unit   Remark
             Input voltage                             VI        Ta=25           0.3       Vcc+0.3               Note1
             +3.3V supply voltage                     Vcc        Ta=25              0             4
             Storage temperature                      Tstg                         25            60              Note2
             Operating temperature                    Topa                          0            50
             Inverter supply voltage                  VIN        Ta=25             0.5           25
             Brightness control IC supply voltage     VBC        Ta=25             1.0           7.0
             Inverter signals                        VBB,        Ta=25             1.0           7.0
                                                    SDA,SCL
                                                    FPVEE        Ta=25             0.5           7.0
            Note1     LVDS signals
            Note2     Humidity 95%RH Max. at Ta        40    .
                                 Maximum wet-bulb temperature at 39          or less at Ta>40         .
                                 No condensation.




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center                       www.panelook.com




         6. Electrical Characteristics
          6-1.TFT-LCD panel driving                                                           Ta 25
                        Parameter                  Symbol    Min.   Typ.    Max.      Unit      Remark
                    Supply voltage                  Vcc      +3.0   +3.3    +3.6                Note2
                    Current dissipation              Icc            720     1240                Note3
              Permissive input ripple voltage       VRP                     100     mV p-p    Vcc=+3.3V
               Input voltage range                   VI       0              2.4       V       LVDS signal
               Differential input        High       VTH                     +100      mV        VCM=+1.2V
               threshold voltage         Low        VTL
