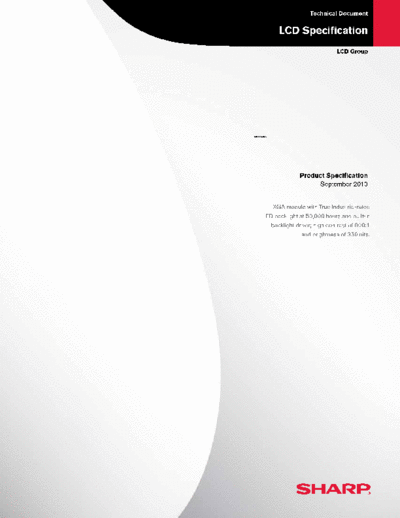

Image preview - the first page of the document
![Panel_SHARP_LQ150X1LG93_1_[DS]](/pics/5eb07e5d8a925.gif)
>> Download Panel_SHARP_LQ150X1LG93_1_[DS] documenatation <<
Text preview - extract from the document
Technical Document
LCD Specification
LCD Group
LQ150X1LG93 LCD Module
Product Specification
September 2010
XGA module with True Industrial-rated
LED backlight at 50,000 hours and built-in
backlight driver; high contrast of 800:1
and brightness of 350 nits.
3
RECORDS OF REVISION
LQ150X1LG93
REVI
SPEC No. DATE SED SUMMARY NOTE
No PAGE
LD-22902A 2010/9/15 -
- Contents -
No. page
1 Application 1
2 Overview 2
3 Mechanical Specifications 2
4 Input Terminals 3
5 Absolute Maximum Ratings 9
6 Electrical Characteristics 10
7 Timing characteristics of input signals 12
8 Input Signals, Basic Display Colors and Gray Scale of Each Color 13
9 Optical Characteristics 15
10 Handling Precautions 17
11 Packing form 18
12 Reliability test items 18
13 Others 19
14 Storage conditions 20
Fig.1 OUTLINE DIMENSIONS 21
Fig.3 PACKING FORM 22
LD-22902A- 1
1Application
This specification applies to the color TFT-LCD module LQ150X1LG93.
This specification is the proprietary product of SHARP CORPORATION (SHARP) and include
materials protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in
any form or by any means, electronic or mechanical, for any purpose, in whole or in part, without the express
written permission of SHARP.
The device listed in this specification was designed and manufactured for use in general electronic
equipment.
In case of using the device for applications such as control and safety equipment for transportation (controls of
aircraft, trains, automobiles, etc.), rescue and security equipment and various safety related equipment which
require higher reliability and safety, take into consideration that appropriate measures such as fail-safe
functions and redundant system design should be taken.
Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment
for life support.
SHARP assumes no responsibility for any damage resulting from the use of the device which does not comply
with the instructions and the precautions specified in this specification .
Contact and consult with a SHARP sales representative for any questions about this device.
LD-22902A- 2
2Overview
This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor).
It is composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit and a White-LED
Backlight unit. Graphics and texts can be displayed on a 1024◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
