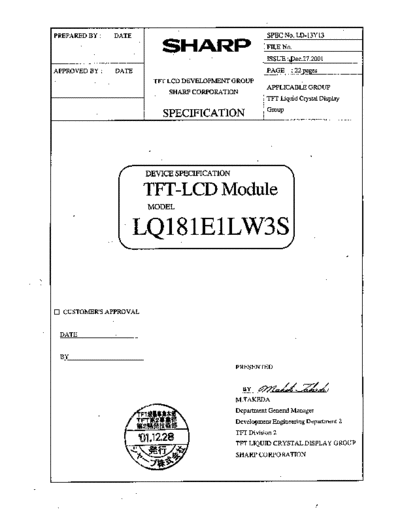

Image preview - the first page of the document



>> Download Panel_SHARP_LQ181E1LW3S_0_[DS] documenatation <<

Text preview - extract from the document

                                                       LD-13Y13
                       RECORDS OF REVISION
LQ181E1LW3S
                            REVISED
 SPEC No.       DATE                         SUMMARY    NOTE
                              No.     PAGE
 LD-13Y13     Dec.27.2001      -       -        -      1st Issue
                                                                                                           LD-13Y13-1


1. Application
      This specification applies to the color 18.1 SXGA TFT-LCD module LQ181E1LW3S.




l     These specification sheets are the proprietary product of SHARP CORPORATION("SHARP) and include
      materials protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in
      any form or by any means, electronic or mechanical, for any purpose, in whole or in part, without the express
      written permission of SHARP.


l     The device listed in these specification sheets was designed and manufactured for use in OA equipment.


l     In case of using the device for applications such as control and safety equipment for transportation(aircraft,
      trains, automobiles, etc. ), rescue and security equipment and various safety related equipment which require
      higher reliability and safety, take into consideration that appropriate measures such as fail-safe functions and
      redundant system design should be taken.


l     Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
      telecommunication equipment(trunk lines), nuclear power control equipment and medical or other equipment for
      life support.


l     SHARP assumes no responsibility for any damage resulting from the use of the device which does not comply
      with the instructions and the precautions specified in these specification sheets.


l     Contact and consult with a SHARP sales representative for any questions about this device.




2. Overview
    This module is a color active matrix LCD module incorporating amorphous silicon TFT (
                                                                                        Thin Film Transistor).
It is composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit and a back light unit.
Graphics and texts can be displayed on a 1280
