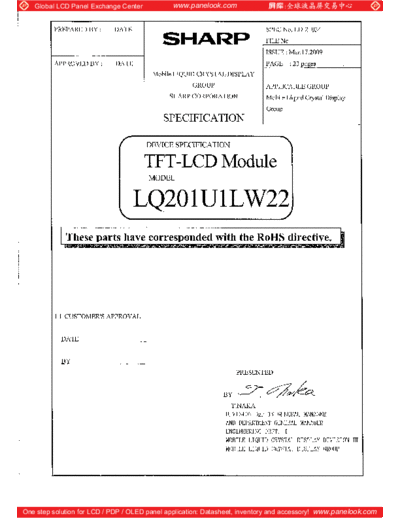

Image preview - the first page of the document
![Panel_SHARP_LQ201U1LW22_0_[DS]](/pics/5eb080da2cd21.gif)
>> Download Panel_SHARP_LQ201U1LW22_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD-21034 Mar.17.2009 1 st Issue
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD-21034-1
1. Application
This specification applies to the color 20.1 UXGA TFT-LCD module LQ201U1LW22.
These specification sheets are the proprietary product of SHARP CORPORATION("SHARP) and include
materials protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in
any form or by any means, electronic or mechanical, for any purpose, in whole or in part, without the express
written permission of SHARP.
The device listed in these specification sheets was designed and manufactured for use in OA equipment.
In case of using the device for applications such as control and safety equipment for transportation(aircraft,
trains, automobiles, etc. ), rescue and security equipment and various safety related equipment which require
higher reliability and safety, take into consideration that appropriate measures such as fail-safe functions and
redundant system design should be taken.
Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment
for life support.
SHARP assumes no responsibility for any damage resulting from the use of the device which does not comply
with the instructions and the precautions specified in these specification sheets.
Contact and consult with a SHARP sales representative for any questions about this device.
2. Overview
This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor).
It is composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit and a back light unit.
Graphics and texts can be displayed on a 1600 3 1200 dots panel with about 16 million colors by supplying 48
bit data signals(8bit 2pixel RGB) , two display enable signals, two dot clock signals, +12V DC supply
voltages for TFT-LCD panel driving and supply voltage for back light.
It is a wide viewing-angle-module (Vertical viewing angle:176 Horizontal viewing angle:176 ,CR 10).
This module performance achieve 20ms response time (full; black to white, or white to black) done by improving
Liquid crystal material.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD-21034-2
3. Mechanical Specifications
Parameter Specifications Unit
Display size 51 (Diagonal) cm
20.1 (Diagonal) Inch
Active area 408.0 (H) 306.0 (V) mm
Pixel format 1600 (H) 1200 (V) Pixel
(1 pixel R G B dots)
Pixel pitch 0.255(H) 0.255 (V) mm
Pixel configuration R,G,B vertical stripe
Display mode Normally black
Unit outline dimensions 432(W) 331.5 (H) 25 (D) mm
Mass 3.2 (Typ) kg
Surface treatment Anti-glare And hard-coating 3H
Outline dimensions are shown in Fig.1.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD-21034-3
4. Input Terminals and Function
4-1. TFT-LCD panel driving
LVDS interface with 2 input signal, and +12VDC power supply, control signal
Connectors: MDF76LARW-30S-1H (HIROSE) or FI-XB30SRL-HF11 (JAE)
Corresponding connectors: FI-X30M (JAE)
LVDS receiver Contained in a control IC
Corresponding LVDS transmitter THC63LVDM83R(Thine) or compatible
Pin No. Symbol Function Remark
1 Vcc +12V power supply
2 Vcc +12V power supply
3 Vcc +12V power supply
4 Vcc +12V power supply
5 Vss Gnd
6 Vss Gnd
7 RBIN3+ Positive (+) LVDS differential data input (B port) LVDS
8 RBIN3- Negative (-) LVDS differential data input (B port) LVDS
9 CKBIN+ Positive (+) LVDS differential clock input (B port) LVDS
10 CKBIN- Negative (-) LVDS differential clock input (B port) LVDS
11 RBIN2+ Positive (+) LVDS differential data input (B port) LVDS
12 RBIN2- Negative (-) LVDS differential data input (B port) LVDS
13 RBIN1+ Positive (+) LVDS differential data input (B port) LVDS
14 RBIN1- Negative (-) LVDS differential data input (B port) LVDS
15 RBIN0+ Positive (+) LVDS differential data input (B port) LVDS
16 RBIN0- Negative (-) LVDS differential data input (B port) LVDS
17 Vss Gnd
18 Vss Gnd
19 RAIN3+ Positive (+) LVDS differential data input (A port) LVDS
20 RAIN3- Negative (-) LVDS differential data input (A port) LVDS
21 CKAIN+ Positive (+) LVDS differential clock input (A port) LVDS
22 CKAIN- Negative (-) LVDS differential clock input (A port) LVDS
23 RAIN2+ Positive (+) LVDS differential data input (A port) LVDS
24 RAIN2- Negative (-) LVDS differential data input (A port) LVDS
25 RAIN1+ Positive (+) LVDS differential data input (A port) LVDS
26 RAIN1- Negative (-) LVDS differential data input (A port) LVDS
27 RAIN0+ Positive (+) LVDS differential data input (A port) LVDS
28 RAIN0- Negative (-) LVDS differential data input (A port) LVDS
29 Vss Gnd
30 SELLVDS Select LVDS data order Note1 Pull Up
Note1 This module has dual pixel port to receive dual pixel data at the same time . A port receives first pixel
data and B port receives second pixel data in dual pixel data.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD-21034-4
Note1 SELLVDS (Thine:THC63LVDM83R)
Transmitter SELLVDS
Pin No Data Low (=GND) High (=3.0V or Open)
51 TA0 R0(LSB) R2
52 TA1 R1 R3
54 TA2 R2 R4
55 TA3 R3 R5
56 TA4 R4 R6
3 TA5 R5 R7(MSB)
4 TA6 G0(LSB) G2
6 TB0 G1 G3
7 TB1 G2 G4
11 TB2 G3 G5
12 TB3 G4 G6
14 TB4 G5 G7(MSB)
15 TB5 B0(LSB) B2
19 TB6 B1 B3
20 TC0 B2 B4
22 TC1 B3 B5
23 TC2 B4 B6
24 TC3 B5 B7(MSB)
27 TC4 (NA) (NA)
28 TC5 (RSV1) (RSV1)
30 TC6 DE DE
50 TD0 R6 R0(LSB)
2 TD1 R7(MSB) R1
8 TD2 G6 G0(LSB)
10 TD3 G7(MSB) G1
16 TD4 B6 B0(LSB)
18 TD5 B7(MSB) B1
25 TD6 (NA) (NA)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD-21034-5
4-2 Interface block diagram
LVDS receiver Contained in a control IC.
Applied Transmitter THC63LVDM83R(THine electronics), or equivalent: DS90C383,DS90C383A(National semiconductor)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD-21034-6
4-2. Back light driving
CN1, 3 (High voltage side)
The module-side connector: XHP 7 (JST)
The user-side connector: S7B XH A (JST)
Cable: UL Style No.: 10267
rated voltage: 2kV (AC)
AWG: 26
Pin no. symbol Function Cable color
1 H-1 Power supply for lamp 1 (High voltage side) Pink
2 NC This is electrically opened.
3 NC This is electrically opened.
4 H-2 Power supply for lamp 2 (High voltage side) Blue
5 NC This is electrically opened.
6 NC This is electrically opened.
7 H-3 Power supply for lamp 3 (High voltage side) Orange
CN 2,4(Low voltage side)
The module-side connector: BHR 03VS 1 (JST)
The user-side connector: SM03(4.0)B BHS 1 TB (JST)
Cable: UL Style No.: 10368
rated voltage: 300V (AC)
AWG: 26
Pin no. symbol Function Cable color
1 L-1 Power supply for lamp 1 (Low voltage side) White
2 L-2 Power supply for lamp 2 (Low voltage side) Gray
3 L-3 Power supply for lamp 3 (Low voltage side) Brown
The pair of CN1 and CN2 is for the same CCFT lamps. The pair of CN3 and CN4 is in the same way.
CN1
High voltage side
TFT LCD CN2
XHP-7
Low voltage side
BHR-03VS-1
CN3
CN4
5. Absolute Maximum Ratings
Parameter Symbol Condition Ratings Unit Remark
+12.0V supply voltage Vcc Ta=25 0 14.0
Storage temperature Tstg 25 60 Note1
Operating temperature (Ambient) Topa 0 50
Note1 Humidity 95%RH Max. ( Ta 40 )
Maximum wet-bulb temperature at 39 or less. ( Ta>40 )
No condensation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD-21034-7
6. Electrical Characteristics
6-1. TFT-LCD panel driving Ta 25
Parameter Symbol Min. Typ. Max. Unit Remark
Vcc Supply voltage Vcc +10.8 +12.0 +13.2 V Note1
Current dissipation Icc 420 600 mA Note2
Rush Current 3 A Note3
Permissive input ripple voltage VRF 100 mVp-p
Input voltage (Low) VIL 0 +0.6 V SELLVDS
Input voltage (High) VIH +2.7 +3.3 V SELLVDS
Input current (Low) IIL 500 PA VI=GND
Input current (High) IIH 10 PA VI=Vcc
Note1
Vcc Vcc
1 On-off sequences of Vcc and data 10.8V 10.8V
0 t1 60ms
0 t2 10ms DE,CK ,Data DE,CK,Data
0 t3 1s 1.0V 1.0V
t4 100ms
t3 t4 t1 t2
2 Dip conditions for supply voltage
Vmin,Vth=10.8V, 9.6V
1) Vth Vcc Vmin
td 20ms
2) Vcc Vth
Vth Vmin
The LCD module shuts down.
Note2 Typical current situation : 256-gray-bar pattern
Vcc=+12.0V
The explanation of each gray scale ,GS,
is described below section 8.
Note3 The duration of rush current is about 1ms.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD-21034-8
6-2. Back light driving
The back light system is an edge-lighting type with 6 CCFTs (Cold Cathode Fluorescent Tube).
The characteristics of the lamp are shown in the following table.
The value mentioned below is at the case of one CCFT.
Parameter Symbol Min. Typ. Max. Unit Remark
Lamp current range IL 3 6 7 mArms Note1
Lamp voltage VL 800 900 Vrms Ta=25 IL=6.0mArms FL=60kHz
Lamp power consumption PL 4.8 5.4 W Note2 IL=6.0mArms FL=60kHz
Lamp frequency FL 35 60 70 KHz Note3
Kick-off voltage Vs 1800 Vrms Ta=25 Note4
2000 Vrms Ta=0 Note4
Lamp life time TL 50,000 Hour Note5
Note1 A lamp can be light in the range of lamp current shown above.
Maximum rating for current is measured by high frequency current measurement equipment
connected to VLOW at circuit showed below.
(Note : To keep enough kick-off voltage and necessary steady voltage for CCFT.)
Lamp frequency : 35 70kHz
Ambient temperature : 0 50
Note2 Referential data per one CCFT by calculation ( IL VL ) .
The data doesn't include loss at inverter .
Note3 Lamp frequency of inverter may produce interference with horizontal synchronous frequency, and
this may cause horizontal beat on the display. Therefore, adjust lamp frequency, and keep inverter as far
as from module or use electronic shielding between inverter and module to avoid interference.
Note4 It is defined at 27pF for the ballast capacitor of a DC-AC inveter.
The Kick-off voltage may rise up in the user set,please decide the open output voltage by checking not
to occur lighting failure under operating state.
The open output voltage should be applied to the lamp for more than 1 second to startup. Or when the
ambient luminance around the lamp is more than 1lux,it should be applied to the lamp for more than
100ms.Otherwise the lamp may not be turned on..
Note5 Lamp life time is defined as the time when either or occurs in the continuous operation under
the condition of Ta=25 and IL=6.0 mArms .
Brightness becomes 50% of the original value under standard condition.
Kick-off voltage at Ta=0 exceeds maximum value,2000Vrms .
(Lamp lifetime may vary if lamp is in portrait position due to the change of mercury density inside the lamp.)
In case of operating under lower temp environment, the lamp exhaustion is accelerated and the brightness
becomes lower. (Continuous operating for around 1 month under lower temp condition may reduce the
brightness to half of the original brightness.)
In case of such usage under lower temp environment, periodical lamp exchange is recommended.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD-21034-9
[Note6] The performance of the backlight, for example life time or brightness, is much influenced by the
characteristics of the DC-AC inverter for the lamp. When you design or order the inverter, please
make sure that a poor lighting caused by the mismatch of the backlight and the inverter
(miss-lighting, flicker, etc.) never occur. When you confirm it, the module should be operated in the
same condition as it is installed in your instrument.
Be sure to use a back light power supply with the safety protection circuit such as the detection circuit
for the excess voltage, excess current and or electric discharge waveform.
Be sure to use the detect circuit by which one side of the CCFT lamps can be controlled independently.
Otherwise, when one side of the CCFT is open, the excess current may possibly be applied to the other
side of the lamp.
[Note7] It is required to have the inverter designed so that to allow the impedance deviation of the two CCFT
lamps and the capacity deviation of barast capacitor.
[Note8] Under the environment of 10lx or less, miss-lighting or lighting delay may occur.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
LD-21034-10
7. Timing characteristics of input signals
7-1. Timing characteristics
Parameter Symbol Min. Typ. Max. Unit Remark
Clock Frequency 1/Tc 60.0 81.0 85.0 MHz
Skew Tcsq ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
