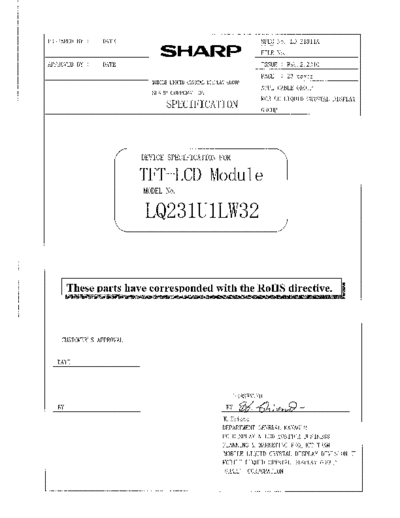

Image preview - the first page of the document
![Panel_SHARP_LQ231U1LW32_0_[DS]](/pics/5eb0812ce8cf0.gif)
>> Download Panel_SHARP_LQ231U1LW32_0_[DS] documenatation <<
Text preview - extract from the document
1. Application
This specification sheets applies to the color TFT-LCD module LQ231U1LW32.
These specification sheets are the proprietary product of SHARP CORPORATION ("SHARP) and include
materials protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in
any form or by any means, electronic or mechanical, for any purpose, in whole or in part, without the express
written permission of SHARP.
The application example published in this specification sheets is used to explain a typical application example
that uses the product of our company. It is not the one to permit the guarantee or the execution right to the
execution of an industrial property and other right according to this technological material. Moreover, SHARP
assumes no responsibility for any problem related to the third party and the industrial property, etc. occurring
by having used the product of our company.
The device listed in these specification sheets was designed and manufactured for use in general electronic
equipment.
In case of using the device for applications such as control and safety equipment for transportation (controls of
aircraft, trains, automobiles, etc.), rescue and security equipment and various safety related equipment which
require higher reliability and safety, take into consideration that appropriate measures such as fail-safe
functions and redundant system design should be taken.
Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment
for life support.
SHARP assumes no responsibility for any damage resulting from the use of the device which does not comply
with the instructions and the precautions specified in these specification sheets.
Confirm "11. Handling Precautions " item when you use the device.
Contact and consult with a SHARP sales representative for any questions about this device.
2. Overview
This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film
Transistor). It is composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit and a
back light unit. Graphics and texts can be displayed on a 1600 RGB 1200 dots panel with about 16,777,216
colors by using LDI (LVDS Display Interface) and supplying +5.0V DC supply voltages for TFT-LCD panel
driving and applying +12.0V DC supply voltage for LED backlight-driving DC/DC converter.
It is a wide viewing-angle-module, high brightness(500cd/ ) and high speed response specification.
These LCD modules have corresponded with the RoHS directive.
3. Mechanical Specifications
Parameter Specifications Unit
Display size 59 (23.1") Diagonal cm
Active area 470.4 (H) 352.8 (V) mm
Pixel format 1600 (H) 1200 (V) Pixel
(1 pixel R+G+B dots)
Aspect ratio 4:3
Pixel pitch 0.294 (H) 0.294 (V) mm
Pixel configuration R, G, B vertical stripe
Display mode Normally black
Unit outline dimensions *1 530.0(W) 431.5(H) 23.9(D)TYP mm
Mass 4,500 (max) g
Surface treatment (Haze value) Anti-glare coating :
(Haze value 40%, Hardness 2H)
*1.Note: excluding back light cables and connecters.
The thickness of module (D) doesn't contain the projection.
Outline dimensions are shown in Fig.1.
4. Input Terminals
4-1. TFT-LCD panel driving
CN1 (Interface signals and +5.0V power supply)
Using connectors FI-WE31P-HFE (Japan Aviation Electronics Industry, Limited)
Corresponding connectors FI-W31M (Japan Aviation Electronics Industry, Limited)
FI-C3-A3-15000(Contact)
Using LVDS receiver Type contained in a control IC
(DS90CF386 (NS Corporation) or equivalent)
Corresponding LDI Transmitter DS90C387 (NS Corporation) or equivalent)
Non-DC Balanced Mode
Table 4-1-1 LDI Interface signals
Pin No. Symbol Function Remark
1 Vcc +5V power supply
2 Vcc +5V power supply
3 Vcc +5V power supply
4 Vcc +5V power supply
5 GND GND
6 GND GND
7 GND GND
8 NC NC
9 GMCH Gamma control(High)
10 GMCL Gamma control(Low)
11 RxO0- Receiver signal of LDI (O0-) LDI
12 RxO0+ Receiver signal of LDI (O0+) LDI
13 RxO1- Receiver signal of LDI (O1-) LDI
14 RxO1+ Receiver signal of LDI (O1+) LDI
15 RxO2- Receiver signal of LDI (O2-) LDI
16 RxO2+ Receiver signal of LDI (O2+) LDI
17 RxO- Receiver CLK of LDI(OC-) LDI
18 RxO+ Receiver CLK of LDI(OC+) LDI
19 RxO3- Receiver signal of LDI (O3-) LDI
20 RxO3+ Receiver signal of LDI (O3+) LDI
21 RxE0- Receiver signal of LDI (E0-) LDI
22 RxE0+ Receiver signal of LDI (E0+) LDI
23 RxE1- Receiver signal of LVDS (E1-) LDI
24 RxE1+ Receiver signal of LDI (E1+) LDI
25 RxE2- Receiver signal of LDI (E2-) LDI
26 RxE2+ Receiver signal of LDI (E2+) LDI
27 RxE3- Receiver signal of LDI (E3-) LDI
28 RxE3+ Receiver signal of LDI (E3+) LDI
29 NC NC
30 LVDSGND LVDSGND
31 LVDSGND LVDSGND
Note1: Resistance (RVR) between GMCL and GMCH enables Gamma adjustment.
(See Fig.4-5-1: RVR=OPEN recommended)
Note2: There is a possibility that trouble occurs in initial and long-term reliability when using
it besides corresponding connector.
4-2. Data Mapping
1) 8 bit input
A/D Board CABLE LCD
Graphic Controller LVDS TX Control IC(Built in LVDS)
Note-1) Pin DS90C387 (DS90CF386 or equivalent)
R0 4 R16 R16 RO0
R1 3 R17 R17 RO1
R2 10 R10 R10 RO2
R3 9 R11 R11 RO3
R4 8 R12 R12 RO4
R5 7 R13 RxO0- 50 R1 RxO0- R13 RO5
R6 6 R14 RxO0+ 49 R2 RxO0+ R14 RO6
R7 5 R15 R15 RO7
G0 94 G16 G16 GO0
G1 93 G17 RxO1- 47 P1 RxO1- G17 GO1
G2 2 G10 RxO1+ 46 P2 RxO1+ G10 GO2
G3 1 G11 G11 GO3
G4 100 G12 G12 GO4
G5 99 G13 RxO2- 45 N1 RxO2- G13 GO5
G6 96 G14 RxO2+ 44 N2 RxO2+ G14 GO6
G7 95 G15 G15 GO7
B0 86 B16 B16 BO0
B1 85 B17 RxO3- 39 L1 RxO3- B17 BO1
B2 92 B10 RxO3+ 38 L2 RxO3+ B10 BO2
B3 91 B11 B11 BO3
B4 90 B12 B12 BO4
B5 89 B13 B13 BO5
B6 88 B14 B14 BO6
B7 87 B15 B15 BO7
M1 RxOC-
M2 RxOC+
R16 R26 RE0
R17 R27 RE1
R10 R20 RE2
R11 R21 RE3
R12 R22 RE4
R13 RxE0- 37 J1 RxE0- R23 RE5
R14 RxE0+ 36 J2 RxE0+ R24 RE6
R15 R25 RE7
G16 G26 GE0
G17 RxE1- 34 H1 RxE1- G27 GE1
G10 RxE1+ 33 H2 RxE1+ G20 GE2
G11 G21 GE3
G12 G22 GE4
G13 RxE2- 32 G1 RxE2- G23 GE5
G14 RxE2+ 31 G2 RxE2+ G24 GE6
G15 G25 GE7
B16 B26 BE0
B17 RxE3- 29 E1 RxE3- B27 BE1
B10 RxE3+ 28 E2 RxE3+ B20 BE2
B11 B21 BE3
B12 B22 BE4
B13 B23 BE5
B14 B24 BE6
B15 B25 BE7
Note-2 Note-2
Hsync 54 Hsync RxC- 42 F1 RxEC- Hsync Hsync
Vsync 55 Vsync RxC+ 41 F2 RxEC+ Vsync Vsync
DE 56 DE DE DE
CLOCK 11 CLKIN CLKOUT CLOCK
Note-1) Signal configuration
EVEN DATA(ROx,BOx,GOx: 1'st,3'rd,5th.........data)
ODD DATA(REx,GEx,BEx : 2'nd,4'th,6'th.........data)
Note-2) Hsync, Vsync Not use.
Note-3) Use twisted differential cable
Note-4) DS90C387Non-DC Balanced Mode
A/D Board CABLE LCD
LVDS TX Control IC(Built in LVDS)
Graphic controller Pin DS90C387 (DS90CF386 or equivalent)
RE0 4 R16 R16 RO0
RE1 3 R17 R17 RO1
RE2 10 R10 R10 RO2
RE3 9 R11 R11 RO3
RE4 8 R12 R12 RO4
RE5 7 R13 RxO0- 50 R1 RxO0- R13 RO5
RE6 6 R14 RxO0+ 49 R2 RxO0+ R14 RO6
RE7 5 R15 R15 RO7
GE0 94 G16 G16 GO0
GE1 93 G17 RxO1- 47 P1 RxO1- G17 GO1
GE2 2 G10 RxO1+ 46 P2 RxO1+ G10 GO2
GE3 1 G11 G11 GO3
GE4 100 G12 G12 GO4
GE5 99 G13 RxO2- 45 N1 RxO2- G13 GO5
GE6 96 G14 RxO2+ 44 N2 RxO2+ G14 GO6
GE7 95 G15 G15 GO7
BE0 86 B16 B16 BO0
BE1 85 B17 RxO3- 39 L1 RxO3- B17 BO1
BE2 92 B10 RxO3+ 38 L2 RxO3+ B10 BO2
BE3 91 B11 B11 BO3
BE4 90 B12 B12 BO4
BE5 89 B13 B13 BO5
BE6 88 B14 B14 BO6
BE7 87 B15 B15 BO7
M1 RxOC-
M2 RxOC+
RO0 76 R26 R26 RE0
RO1 75 R27 R27 RE1
RO2 84 R20 R20 RE2
RO3 81 R21 R21 RE3
RO4 80 R22 R22 RE4
RO5 79 R23 RxE0- 37 J1 RxE0- R23 RE5
RO6 78 R24 RxE0+ 36 J2 RxE0+ R24 RE6
RO7 77 R25 R25 RE7
GO0 66 G26 G26 GE0
GO1 65 G27 RxE1- 34 H1 RxE1- G27 GE1
GO2 74 G20 RxE1+ 33 H2 RxE1+ G20 GE2
GO3 73 G21 G21 GE3
GO4 72 G22 G22 GE4
GO5 71 G23 RxE2- 32 G1 RxE2- G23 GE5
GO6 70 G24 RxE2+ 31 G2 RxE2+ G24 GE6
GO7 69 G25 G25 GE7
BO0 58 B26 B26 BE0
BO1 57 B27 RxE3- 29 E1 RxE3- B27 BE1
BO2 64 B20 RxE3+ 28 E2 RxE3+ B20 BE2
BO3 63 B21 B21 BE3
BO4 62 B22 B22 BE4
BO5 61 B23 B23 BE5
BO6 60 B24 B24 BE6
BO7 59 B25 B25 BE7
Note Note
Hsync 54 Hsync RxC- 42 F1 RxEC- Hsync 71 Hsync
Vsync 55 Vsync RxC+ 41 F2 RxEC+ Vsync 70 Vsync
DE 56 DE DE 69 DE
CLOCK 11 CLKIN CLKOUT 42 CLOCK
Note-1Hsync, Vsync Not use
Note-2Use twisted differential cable impedance
Note-3DS90C387Non-DC Balanced Mode
4-3. Input signal timing chart
1 cycle
Rx*C+
Rx*C-
Rx*0+
Rx*0-
Rx*1+
Rx*1-
Rx*2+
Rx*2-
Rx*3+
Rx*3-
0 or E
DE : Display Enable
NA : Not Available
4-3. Backlight
CN2
Using connector : S12B-PH-SM4-TB (JST)
Corresponding connector : PHR-12 (JST) Cable : AWG#24 recommended
Pin No. Symbol Function Remark
1 VLED +12.0V LED Backlight power supply
2 VLED +12.0V LED Backlight power supply
3 VLED +12.0V LED Backlight power supply
4 VLED +12.0V LED Backlight power supply
5 VLED +12.0V LED Backlight power supply
6 LED GND LED GND
7 LED GND LED GND
8 LED GND LED GND
9 LED GND LED GND
10 LED GND LED GND
11 Vcnt BL ON/OFF
12 Vvr Brightness control
100%
90% RVR = 010k
80%
70%
60%
Gray Scale
50%
RVR ==1.2k
RVR 1.2k
40%
30%
RVR = OPEN 10k
RVR = OPEN 10k RVR = SHART
RVR = SHORT
20%
10%
0%
0 50 100 150 200 250
Brightness Ratio(%)
Note) Fig.4-5-1 shows reference characteristics but dose not guarantee it.
5. Absolute Maximum Ratings
Parameter Symbol Condition Terminal Symbol Ratings Unit Remark
Supply voltage Vcc Ta=25 Vcc -0.3 + 6.0 Note1
LED Supply voltage VLED Ta=25 VLED -0.3 + 14.0
Input voltage VI1 Ta=25 LVDS input signal -0.3 +3.6
Vcnt Ta=25 Vcnt -0.3 VLED
VPWM Ta=25 VPWM 0 14.0
Brightness Control Duty Ta=25 VPWM 0 100 %
Duty ratio
LED temperature TLED +90 Note2
Storage temperature TSTG Ambient -25 + 65 Note1
Operating temperature TOPA Ambient min 0 Note1
Panel surface Note4
max + 60
(Active area)
Note1 Humidity 90%RH Max. ( Ta 40 )
Maximum wet-bulb temperature at 39 or less. ( Ta>40 )
No condensation.
Note2 The measurement point refers to Fig. 1.
Note3 There is a possibility of causing deterioration in the irregularity and others of the screen
and the display fineness when preserving or using it in more than 60 .
Note4 When ambient temperature is more than 50 , please cool the back side of the LCD module by a fan.
6. Electrical Characteristics
6-1. TFT-LCD panel driving Ta +25
arameter Symbol Min. Typ. Max. Unit Remark
Supply voltage VCC +4.75 +5.0 +5.25 V Note2
Current dissipation Vcc=5.0V ICC 1100 1800 mA Note3
Input voltage for LDI LDI signal VL 0 2.4 V
Permissive input ripple voltage VRP 100 mVp-p Vcc=+5.0V
Differential input threshold High VTH VCM +100 mV VCM=+1.2V
voltage
