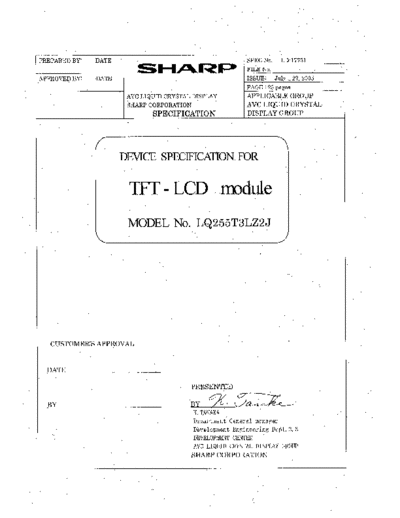

Image preview - the first page of the document



>> Download Panel_SHARP_LQ255T3LZ2J_0_[DS] documenatation <<

Text preview - extract from the document

                        RECORDS OF REVISION
   MODEL No : LQ255T3LZ2J
   SPEC No : LD-17731
  Date       Revised No. PAGE     SUMMARY      NOTE
2005.07.27                -          -        1st Issue
                                                                                                           LD-17731-1
1. Application
    This specification applies to the color 25.5" Wide XGA TFT-LCD module LQ255T3LZ2J.

* These specification sheets are proprietary products of SHARP CORPORATION ("SHARP") and include materials
protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in any form or by
any means, electronic or mechanical, for any purpose, in whole or in part, without the express written permission of
SHARP.

* In case of using the device for applications such as control and safety equipment for transportation (aircraft, trains,
   automobiles, etc.), rescue and security equipment and various safety related equipment which require higher
   reliability and safety, take into consideration that appropriate measures such as fail-safe functions and redundant
   system design should be taken.

* Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
  telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment for
  life support.

* SHARP assumes no responsibility for any damage resulting from the use of the device that does not comply with
   the instructions and the precautions specified in these specification sheets.

* Contact and consult with a SHARP sales representative for any questions about this device.

2. Overview
  This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is
composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit, inverter circuit and back light
system etc. Graphics and texts can be displayed on a 1366
