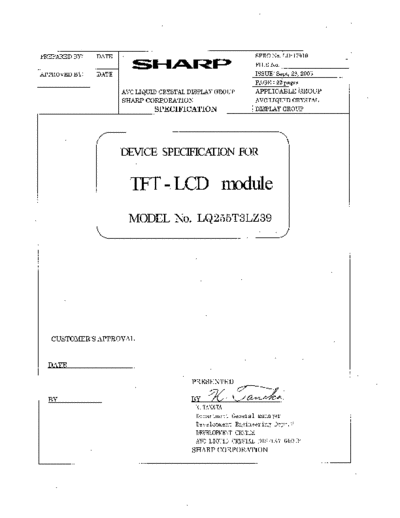

Image preview - the first page of the document
![Panel_SHARP_LQ255T3LZ39_0_[DS]](/pics/5eb0823944808.gif)
>> Download Panel_SHARP_LQ255T3LZ39_0_[DS] documenatation <<
Text preview - extract from the document
RECORDS OF REVISION
MODEL No. : LQ255T3LZ39
SPEC No. : LD-17919
REVISED
DATE NO. PAGE SUMMARY NOTE
No.
2005.09.28 LD-17919 1st Issue
LD-17919-1
1. Application
This specification applies to the color 25.5" Wide XGA TFT-LCD module LQ255T3LZ39.
* These specification sheets are proprietary products of SHARP CORPORATION ("SHARP") and include materials
protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in any form or by
any means, electronic or mechanical, for any purpose, in whole or in part, without the express written permission of
SHARP.
* In case of using the device for applications such as control and safety equipment for transportation (aircraft, trains,
automobiles, etc.), rescue and security equipment and various safety related equipment which require higher
reliability and safety, take into consideration that appropriate measures such as fail-safe functions and redundant
system design should be taken.
* Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment for
life support.
* SHARP assumes no responsibility for any damage resulting from the use of the device that does not comply with
the instructions and the precautions specified in these specification sheets.
* Contact and consult with a SHARP sales representative for any questions about this device.
2. Overview
This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is
composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit, inverter circuit and back light
system etc. Graphics and texts can be displayed on a 1366 RGB 768 dots panel with 16,777,216 colors by
using LVDS (Low Voltage Differential Signaling) to interface, +5V of DC supply voltages.
This module also includes the DC/AC inverter to drive the CCFT. (+24V of DC supply voltage)
And in order to improve the response time of LCD, this module applies the Over Shoot driving (O/S driving)
technology for the control circuit .In the O/S driving technology, signals are being applied to the Liquid Crystal
according to a pre-fixed process as an image signal of the present frame when a difference is found between image
signal of the previous frame and that of the current frame after comparing them.
By using the captioned process, the image signals of this LCD module are being set so that image response can be
completed within one frame, as a result, image blur can be improved and clear image performance can be realized.
3. Mechanical Specifications
Parameter Specifications Unit
64.8 Diagonal cm
Display size
25.5 Diagonal inch
Active area 564.8 (H) x 317.6 (V) mm
1366 (H) x 768 (V)
Pixel Format pixel
1pixel = R + G + B dot
Pixel pitch 0.4135(H) x 0.4135 (V) mm
Pixel configuration R, G, B vertical stripe
Display mode Normally black
Unit Outline Dimensions (*1) 626.0(W) x 373.0(H) x Max48.0(D) mm
Mass 6.4 0.3 kg
Anti glare, low reflection coating
Surface treatment Hard coating: 2H
Haze: 23 +/- 5%
(*1) Outline dimensions are shown in Fig.1
LD-17919-2
4. Input Terminals
4-1. TFT panel driving
CN1 (Interface signals and +5V DC power supply) (Shown in Fig.1)
Using connector SM30B-LDYGLS-01TB (Japan Solderless Terminals MGF. Co., Ltd)
Mating connector FI-X30H, FI-X30C, FI-X30M or FI-X30HL (Japan Aviation Electronics Ind. , Ltd.)
Mating LVDS transmitter THC63LVDM83R or equivalent device
Pin No. Symbol Function Remark
1 VCC +5V Power Supply
2 VCC +5V Power Supply
3 VCC +5V Power Supply
4 VCC +5V Power Supply
5 GND GND
6 GND GND
7 GND GND
8 GND GND
Pull up
9 SELLVDS Select LVDS data order Note 1
Default H:3.3V
10 NC
11 GND Ground
12 RIN0- Negative (-) LVDS differential data input LVDS
13 RIN0+ Positive (+) LVDS differential data input LVDS
14 GND Ground
15 RIN1- Negative (-) LVDS differential data input LVDS
16 RIN1+ Positive (+) LVDS differential data input LVDS
17 GND Ground
18 RIN2- Negative (-) LVDS differential data input LVDS
19 RIN2+ Positive (+) LVDS differential data input LVDS
20 GND Ground
21 CLKIN- Clock Signal(-) LVDS
22 CLKIN+ Clock Signal(+) LVDS
23 GND Ground
24 RIN3- Negative (-) LVDS differential data input LVDS
25 RIN3+ Positive (+) LVDS differential data input LVDS
26 GND Ground
Pull down
27 R/L Horizontal shift direction Note 2
Default L:GND
Pull down
28 U/D Vertical shift direction Note 2
Default L:GND
29 Reserved It is required to set non-connection (OPEN)
30 Reserved It is required to set non-connection (OPEN)
note GND of a liquid crystal panel drive part has connected with a module chassis.
LD-17919-3
Note1 SELLVDS
Transmitter SELLVDS
Pin No Data =L(GND) =H(3.3V) or Open
51 TA0 R0(LSB) R2
52 TA1 R1 R3
54 TA2 R2 R4
55 TA3 R3 R5
56 TA4 R4 R6
3 TA5 R5 R7(MSB)
4 TA6 G0(LSB) G2
6 TB0 G1 G3
7 TB1 G2 G4
11 TB2 G3 G5
12 TB3 G4 G6
14 TB4 G5 G7(MSB)
15 TB5 B0(LSB) B2
19 TB6 B1 B3
20 TC0 B2 B4
22 TC1 B3 B5
23 TC2 B4 B6
24 TC3 B5 B7(MSB)
27 TC4 NA NA
28 TC5 NA NA
30 TC6 DE(*) DE(*)
50 TD0 R6 R0(LSB)
2 TD1 R7(MSB) R1
8 TD2 G6 G0(LSB)
10 TD3 G7(MSB) G1
16 TD4 B6 B0(LSB)
18 TD5 B7(MSB) B1
25 TD6 NA NA
NA: Not Available
(*) Since the display position is prescribed by the rise of DE (Display Enable) signal,
please do not fix DE signal during operation at "High."
LD-17919-4
Note 2 Display reversal function
Normal (Default) Horizontal reverse image
:
Vertical reverse image Horizontal and vertical reverse image
: :
Interface block diagram
Corresponding Transmitter: THC63LVDM83R (THine) or equivalent device
side
(TFT - LCD side)
8 Rx1IN0+(13)
G0 G7
8
8 Rx1IN0-(12) R0 R7
R0 R7
Rx1IN1+(16) 8
8 G0 G7
B0 B7
LVDS 8
Rx1IN1-(15) TTL B0 B7
Internal circuits
Rx1IN2+(19)
Rx1IN2-(18)
TTL
LVDS
Rx1IN3+(25)
ENAB
Rx1IN3-(24) ENAB
Rx1CLKIN+(22)
controller
CLK PLL PLL
Rx1CLKIN-(21) CK
LD- 17919-5
Block Diagram (LCD Module)
Input Signal
CLKIN+
CLKIN-
RIN0-
Control PWB Source Driver
RIN0+
RIN1-
RIN1+ Control
RIN2- CN1
RIN2+ Signal
RIN3-
G a t e D riv e r
CN2
RIN3+
R/L
LCD PANEL
