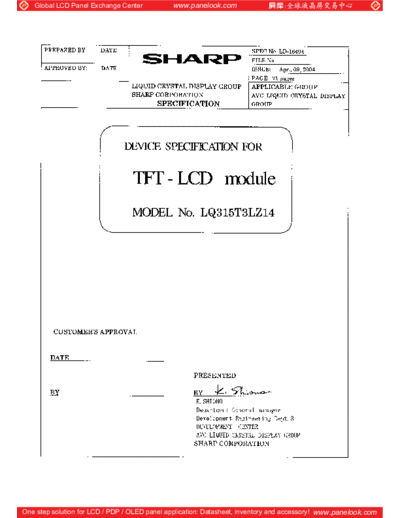

Image preview - the first page of the document



>> Download Panel_SHARP_LQ315T3LZ14_0_[DS] documenatation <<

Text preview - extract from the document

   Global LCD Panel Exchange Center           www.panelook.com




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center           www.panelook.com




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center                      www.panelook.com

                                                                                                                       LD-16404-1
         1. Application
            This specification applies to the color TFT-LCD module LQ315T3LZ14.

         * These specification sheets are proprietary products of SHARP CORPORATION ("SHARP") and include materials
         protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in any form or by
         any means, electronic or mechanical, for any purpose, in whole or in part, without the express written permission of
         SHARP.

         * The device listed in these specification sheets was designed and manufactured for use in AV equipment.

         * In case of using the device for applications such as control and safety equipment for transportation (aircraft, trains,
         automobiles, etc.), rescue and security equipment and various safety related equipment which require higher
         reliability and safety, take into consideration that appropriate measures such as fail-safe functions and redundant
         system design should be taken.

         * Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
         telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment for
         life support.

         * SHARP assumes no responsibility for any damage resulting from the use of the device which does not comply with
            the instructions and the precautions specified in these specification sheets.

         * Contact and consult with a SHARP sales representative for any questions about this device.

         2. Overview
         This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is
         composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit, inverter circuit and back light
         system etc. Graphics and texts can be displayed on a 1366 RGB 768 dots panel with 16,777,216 colors by





         using LVDS (Low Voltage Differential Signaling) to interface, +5V of DC supply voltages and +12V of DC supply
         voltage for back light.
         This module also includes the DC/AC inverter to drive the CCFT .
         And in order to improve the response time of LCD, this module applies the O/S (over shoot) driving technology for
         the control circuit .In the O/S driving technology, signals are being applied to the Liquid Crystal according to a
         pre-fixed process as an image signal of the present frame when a difference is found between image signal of the
         previous frame and that of the current frame after comparing them.
         By using the captioned process, the image signals of this LCD module are being set so that image response can be
         completed within one frame, as a result, image blur can be improved and clear image performance can be realized.


         3. Mechanical Specifications
                            Parameter                                  Specifications                       Unit
                Display size                                                                                 cm
