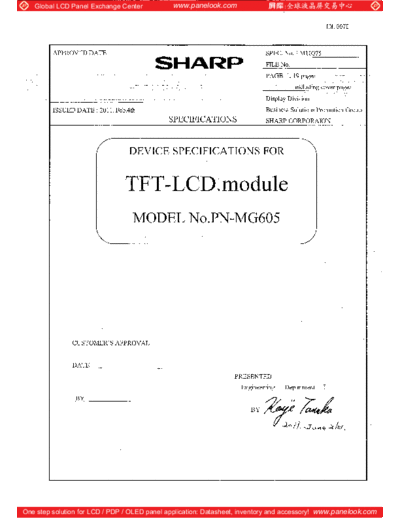

Image preview - the first page of the document



>> Download Panel_SHARP_PN-MG605_1_[DS] documenatation <<

Text preview - extract from the document

   Global LCD Panel Exchange Center           www.panelook.com




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center             www.panelook.com



         RECORDS OF REVISION
             MODEL NO.PN-MG605


            SPEC No.     DATE             REVISED           SUMMARY                                        NOTE
                                          No.       PAGE
               LM10075     2010. Dec.21                      Preliminary version
                         2011.Jan. 21     1-2       8       Tsfc, [NOTE4] in Absolute Maximum Rating
                                                            are added
                         2011.Feb. 3      3                  Revision
                                                     2       "Weigt" was determined.
                                                     13      Pallet gross weight and Carton gross weight
                                                            are added
                                                             Test temperature and state( [Note] )are
                                                            added
                                                     14      Module Label is added and Material Label
                                                            explanation is corrected.
                                                     15      Packing form are changed
                                                     16      Tolerance are added            to   Outline
                                                            dimensions.
                                                     17      Environmental      Impact       Substances
                                                            Information are added.
                         2011. Feb. 4                       authoritative version issued
                         2011.June.16     4         13,15   Packing form has been changed




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center                      www.panelook.com




         1. Application
              This specifications applies to the color 60.0" TFT-LCD module PN-MG605.


         *This document are the proprietary product of SHARP CORPORATION("SHARP") and include materials
           protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in any form
           or by any means, electronic or mechanical, for any purpose, in whole or in part, without the express written
           permission of SHARP.


         *The device listed in this document was designed and manufactured for use in information display.


         *In case of using the device for applications such as control and safety equipment for transportation(aircraft, trains,
           automobiles, etc. ), rescue and security equipment and various safety related equipment which require higher
           reliability and safety, take into consideration that appropriate measures such as fail-safe functions and
           redundant system design should be taken.


         *Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
           telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment
           for life support.


         *SHARP assumes no responsibility for any damage resulting from the use of the device which does not comply
           with the instructions and the precautions specified in this document.


         *Contact and consult with a SHARP sales representative for any questions about this device.

         * SHARP takes no responsibility for any problems related to any intellectual property right of a third party
           resulting from the use of products.




         2. Overview
          This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor).
         It is composed of a color TFT-LCD panel, driver ICs, control circuit and LED back light system etc. Graphics and
         texts can be displayed on a 1366
