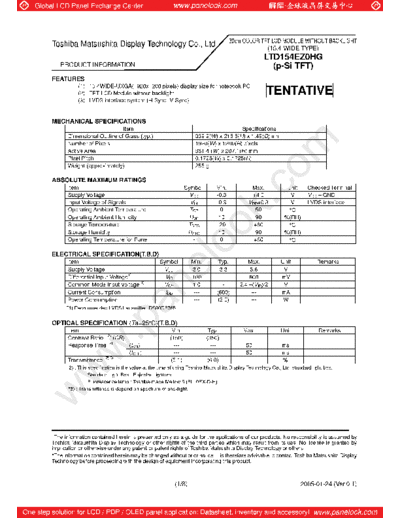

Image preview - the first page of the document
Panel_TOSHIBA_LTD154EZ0HG_0_[DS]


>> Download Panel_TOSHIBA_LTD154EZ0HG_0_[DS] documenatation <<

Text preview - extract from the document
   Global LCD Panel Exchange Center                              www.panelook.com



                                                                                            39cm COLOR TFT-LCD MODULE WITHOUT BACKLIGHT
         Toshiba Matsushita Display Technology Co., Ltd                                                  (15.4 WIDE TYPE)
                                                                                                            LTD154EZ0HG
            PRODUCT INFORMATION                                                                               (p-Si TFT)
         FEATURES
                    (1) 15.4WIDE-UXGA(1920x1200 pixels) display size for notebook PC
                    (2) TFT-LCD Module without backlight                                                     TENTATIVE
                    (3) LVDS interface system (H-Sync, V-Sync)


         MECHANICAL SPECIFICATIONS
                                      Item                                                   Specifications
                Dimensional Outline of Glass (typ.)                        339.2(W) x 215.5(H) x 1.49(D) mm
                Number of Pixels                                           1920(W) x 1200(H) pixels
                Active Area                                                331.4 (W) x 207.1(H) mm
                Pixel Pitch                                                0.1725(W) x 0.1725(H)
                Weight (approximately)                                     255 g

         ABSOLUTE MAXIMUM RATINGS
                Item                                                   Symbol        Min.             Max.             Unit      Checked Terminal
                Supply Voltage                                           VDD         -0.3             +4.0              V        VDD
