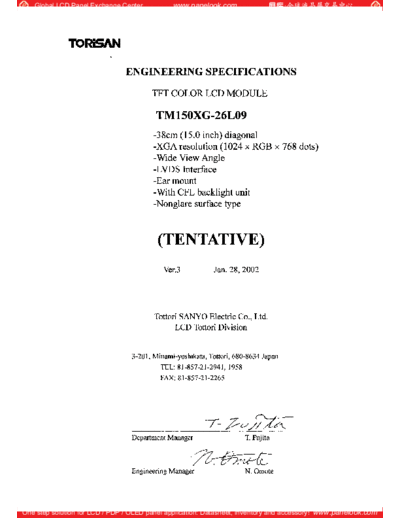

Image preview - the first page of the document
![Panel_TORISAN_TM150XG-26L09_0_[DS]](/pics/5eb08637194a5.gif)
>> Download Panel_TORISAN_TM150XG-26L09_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
NOTICES
1. The contents stated in this document and the product may be subject to change
without prior notice.
When you kindly study to use this product, please ask us or our distributor for
the latest information.
2. This product is developed and produced for usage onto normal electronic
products (office automation equipments, communication peripherals, electric
appliance products, game machines, etc.) and is not suitable for applications
which need extremely high reliability and extreme safety (aero- or space-use
machines, control equipments for nuclear power, life keeping equipments, etc.).
3. This document shall not grant or guarantee any right to adapt intellectual
property or any other patents of third party.
4. Please use this product correctly according to operating conditions and
precautions for use stated in this document.
Please install safety proof in your designing to avoid human accident, fire
accident and social damage, which may be resulted from malfunction of this
product.
5. This product is not designed to withstand against radiant rays.
6. It is strictly prohibited to copy or publish a part or whole of this document
without our prior written approval.
REVISION HISTORY
DATE REVISION PAGE DESCRIPTIONS
NO.
Nov.31,01 Ver. 1 - Initial Release.
Dec.10,01 Ver.2 2 MECHANICAL CHARACTERISTICS
Change LCD module size & Weight
3 OPTICAL CHARACTERISTICS
Change Brightness & Color of CIE Coordinate
Add `( )' by Viewing angle range
16,17 Outer Dimensions
Delete cushion and spacer.
Jan.28,02 Ver.3 3 OPTICAL CHARACTERISTICS
Change Viewing angle range & Color of CIE Coordinate
Tottori SANYO Electric Co., Ltd. TM150XG-26L09 Ver.3 Page 1/17
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
MECHANICAL CHARACTERISTICS
Ta=25 qC
ITEM SPECIFICATION UNIT
LCD module size 331.6(W) u254.75(H) u12.5(T) mm
Resolution 1024 u RGB(W) u 768(H) pixel
Sub pixel pitch 0.099(W) u 0.297(H) mm
Pixel pitch 0.297(W) u 0.297(H) mm
Active viewing area 304.1(W) u 228.1(H) mm
Bezel opening area 307.2(W) u 231.1(H) mm
Weight 1250 TYP. g
ELECTRICAL ABSOLUTE MAXIMUM RATINGS
Ta=25 qC
ITEM SYMBOL MIN MAX UNIT NOTE
Power supply voltage VDD-VSS -0.3 4.0 V
Input voltage VI VSS-0.3 VDD+0.3 V
CFL lamp current IL - 6.5 mA
ENVIRONMENTAL ABSOLUTE MAXIMUM RATINGS
Ta=25 qC
ITEM SYMBOL CONDITIONS MIN MAX UNIT NOTE
Ambient TST Storage -20 60 qC Note 1
temperature TOP Operation 0 50
Humidity - Ta=40 qC max. - 85 %RH No condensation
Note 2
Vibration - Storage - 1.5 G Note 3
Shock - Storage - 50 G XYZ 11ms/direction
[ Note 1 ] Care should be taken so that the LCD module may not be subjected to the
temperature beyond this specification.
[ Note 2 ] Ta>40qC: Absolute humidity shall be less than that of 85%RH/40qC.
[ Note 3 ] 10-200Hz, 30min/cycle, X/Y/Z each one cycle and except for resonant frequency.
ELECTRICAL CHARACTERISTICS
VDD=3.3V ,fV=60Hz ,fCLK=65MHz ,Ta=25qC
ITEM SYMBOL CONDITIONS MIN TYP MAX UNIT NOTE
Power supply voltage VDD-VSS 3.0 3.3 3.6 V
LVDS input VIH High level - - +100
mV VCM=1.2V
threshold voltage VIL Low level -100 - -
LVDS input common
1.0 1.2 1.4 V
mode voltage
LVDS input
RT 100 : Internal
termination resister
Power Supply current IDD Note 1 - 420 800 mA
[ Note 1 ] Under the following display image :
Typ. value : Display pattern is 256 gray scale bar.
Tottori SANYO Electric Co., Ltd. TM150XG-26L09 Ver.3 Page 2/17
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
OPTICAL CHARACTERISTICS
