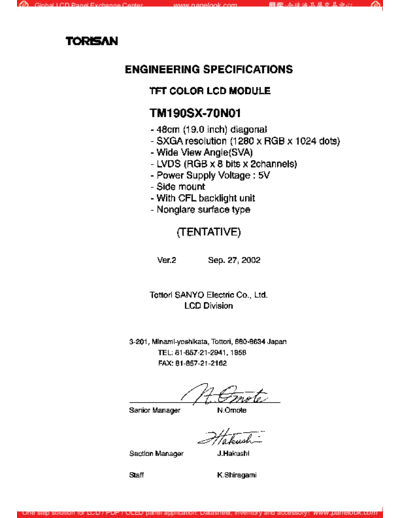

Image preview - the first page of the document
![Panel_TORISAN_TM190SX-70N01_0_[DS]](/pics/5eb0864604c84.gif)
>> Download Panel_TORISAN_TM190SX-70N01_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
NOTICES
1. The contents stated in this document and the product may be subject to
change without prior notice.
When you kindly study to use this product, please ask us or our distributor
for the latest information.
2. This product is developed and produced for usage onto normal electronic
products (office automation equipments, communication peripherals, electric
appliance products, game machines, etc.) and is not suitable for applications
which need extremely high reliability and extreme safety (aero- or space-use
machines, control equipments for nuclear power, life keeping equipments,
etc.).
3. This document shall not grant or guarantee any right to adapt intellectual
property or any other patents of third party.
4. Please use this product correctly according to operating conditions and
precautions for use stated in this document.
Please install safety proof in your designing to avoid human accident, fire
accident and social damage, which may be resulted from malfunction of this
product.
5. This product is not designed to withstand against radiant rays.
6. It is strictly prohibited to copy or publish a part or whole of this document
without our prior written approval.
REVISION HISTORY
DATE REVISION PAGE DESCRIPTIONS
NO.
Jul. 5,02 Ver.1 - Initial Release
Sep.27,02 Ver.2 2 MECHANICAL CHARACTERISTICS
ELECTRICAL CHARACTERISTICS
3 OPTICAL CHARACTERISTICS
4 BACKLIGHT CHARACTERISTICS
9 INTERFACE SIGNAL TIMING PARAMETERS
16 Outer Dimensions
Tottori SANYO Electric Co., Ltd. TM190SX-70N01 Ver.2 Page 1/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
MECHANICAL CHARACTERISTICS
Ta=25 degC
ITEM SPECIFICATION UNIT
Module size 404.6(W) x 330.0(H) x 20.0 Max.(t) mm
Resolution 1280 x RGB(W) x 1024(H) pixel
Sub pixel pitch 0.098(W) x 0.294(H) mm
Pixel pitch 0.294(W) x 0.294(H) mm
Active viewing area 376.32(W) x 301.056(H) mm
Bezel opening area 380.3(W) x 305.0(H) mm
Weight 2700 g
ELECTRICAL ABSOLUTE MAXIMUM RATINGS
Ta=25 degC
ITEM SYMBOL MIN MAX UNIT NOTE
Power supply voltage VDD-VSS 0 6.0 V
Lamp current IL - (8.0) mA
Lamp supply voltage VHV - 2000 Vrms
VLGND - 100 Vrms
ENVIRONMENTAL ABSOLUTE MAXIMUM RATINGS
Ta=25 degC
ITEM SYMBOL CONDITIONS MIN MAX UNIT NOTE
Ambient TST Storage -20 60 degC Note 1
temperature TOP Operation 0 50
Humidity - Ta=40 degC max. - 85 %RH No condensation
Note 2
Vibration - Storage - 1.5 G Note 3
Shock - Storage - 40 G XYZ 11ms/direction
[Note 1] Care should be taken so that the LCD module may not be subjected to the
temperature beyond this specification.
[Note 2] Ta>40 degC: Absolute humidity shall be less than that of 85%RH/40 degC.
[Note 3] 10-200Hz, 30min/cycle, X/Y/Z each one cycle and except for resonant frequency.
ELECTRICAL CHARACTERISTICS
VDD=5.0V ,fV=60Hz ,fCLK=54MHz ,Ta=25 degC
ITEM SYMBOL CONDITIONS MIN TYP MAX UNIT NOTE
Power supply voltage VDD-VSS 4.5 5.0 5.5 V
VTH High level - - +100 VCM
Input logic voltage mV
VTL Low level -100 - - =1.2V
LVDS input
RT - 100 ohm Internal
termination resistor
Power Supply current IDD Note 1 - 700 - mA
Vsync Frequency fV - 60 75 Hz
Hsync Frequency fH - 64 80 kHz
Main Frequency fDCLK 45 54 65 MHz
[ Note 1 ] Typ. value : display pattern is 256 gray scale bar.
[ Note 2 ] VCM : Common mode voltage of LVDS input
Tottori SANYO Electric Co., Ltd. TM190SX-70N01 Ver.2 Page 2/16
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
OPTICAL CHARACTERISTICS
Ta=25 degC, VDD=5.0V, fV=60Hz
ITEM SYMBOL CONDITIONS MIN TYP MAX UNIT NOTE
2 Note
Brightness B =0 deg. - 250 - Cd/m
4,8
Note
Brightness uniformity =0 deg. - - 1.30 -
5,6,8
Note
Contrast ratio CR =0 deg. - 700 - -
2,4,8
