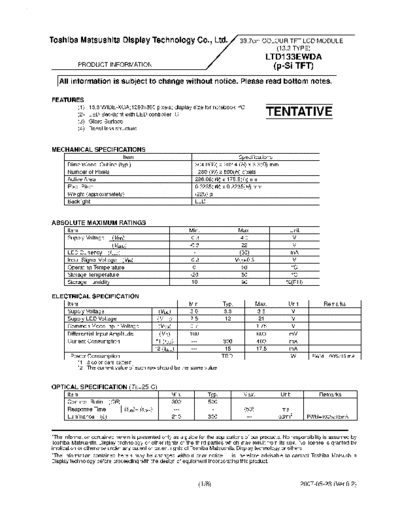

Image preview - the first page of the document
![Panel_Toshiba_Matsushita_LTD133EWDA_0_[DS]](/pics/5eb088896bcf7.gif)
>> Download Panel_Toshiba_Matsushita_LTD133EWDA_0_[DS] documenatation <<
Text preview - extract from the document
www.DataSheet.co.kr
Toshiba Matsushita Display Technology Co., Ltd. 33.7cm COLOUR TFT-LCD MODULE
(13.3 TYPE)
LTD133EWDA
PRODUCT INFORMATION (p-Si TFT)
All information is subject to change without notice. Please read bottom notes.
FEATURES
(1) 13.3"WIDE-XGA(1280x800 pixels) display size for notebook PC
(2) LED Backlight with LED controller IC TENTATIVE
(3) Glare Surface
(4) Bezel less structure
MECHANICAL SPECIFICATIONS
Item Specifications
Dimensional Outline (typ.) 304.0(W) x 202.4 (H) x 3.3(D) mm
Number of Pixels 1280 (W) x 800(H) pixels
Active Area 286.08(W) x 178.8(H) mm
Pixel Pitch 0.2235(W) x 0.2235(H) mm
Weight (approximately) (225) g
Backlight LED
ABSOLUTE MAXIMUM RATINGS
Item Min. Max. Unit
Supply Voltage (VDD) -0.3 4.0 V
(VLED) -0.3 22 V
LED Currency (ILED) - (30) mA
Input Signal Voltage (VIN) -0.3 VDD+0.3 V
Operating Temperature 0 50 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
