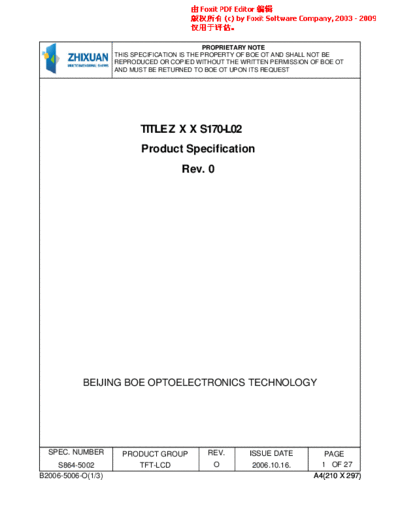

Image preview - the first page of the document
![Panel_ZHIXUAN_ZXXS170-L02_0_[DS]](/pics/5eb08a112c169.gif)
>> Download Panel_ZHIXUAN_ZXXS170-L02_0_[DS] documenatation <<
Text preview - extract from the document
PROPRIETARY NOTE
THIS SPECIFICATION IS THE PROPERTY OF BOE OT AND SHALL NOT BE
REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE OT
AND MUST BE RETURNED TO BOE OT UPON ITS REQUEST
TITLE Z X X S170-L02
Product Specification
Rev. 0
BEIJING BOE OPTOELECTRONICS TECHNOLOGY
SPEC. NUMBER PRODUCT GROUP REV. ISSUE DATE PAGE
S864-5002 TFT-LCD O 2006.10.16. 1 OF 27
B2006-5006-O(1/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT- LCD PRODUCT O 2006.10.16
REVISION HISTORY
REV. ECN NO. DESCRIPTION OF CHANGES DATE PREPARED
O - Initial Release 06.10.16 Dong Xue
SPEC. NUMBER SPEC. TITLE PAGE
S864-5002 Z XXS170-L02 Product Specification 2 OF 27
B2006-5006-O(2/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT- LCD PRODUCT O 2006.10.16.
Contents
No. Item Page
1.0 General Description 4
2.0 Absolute Maximum Ratings 6
3.0 Electrical Specifications 7
4.0 Optical Specifications 8
5.0 Interface Connection 10
6.0 Signal Timing Specifications 13
7.0 Input Signals, Basic Display Colors & Gray Scale of Colors 16
8.0 Power Sequence 17
9.0 Mechanical Characteristics 18
10.0 Reliability Test 19
11.0 Handling & Cautions 20
12.0 Product Serial Number 21
13.0 Packing 22
14.0 Appendix 24
SPEC. NUMBER SPEC. TITLE PAGE
S864-5002 Z XXS170-L02 Product Specification 3 OF 27
B2006-5006-O(3/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT- LCD PRODUCT O 2006.10.16.
1.0 GENERAL DESCRIPTION
1.1 Introduction
HT170E01-300 is a color active matrix TFT LCD module using amorphous silicon TFT's
(Thin Film Transistors) as an active switching devices. This module has a 17.0 inch
diagonally measured active area with SXGA resolutions (1280 horizontal by 1024 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical stripe and this module can display 16,194,227 colors. The TFT-LCD panel used for
this module is adapted for a low reflection and higher color type.
CN21
CN22
LVDS LVDS Rx Source Driver
Input +
Signal T/CON
+
Connector (CN1 )
Gate Driver
mini-LVDS Tx
TFT LCD Panel
