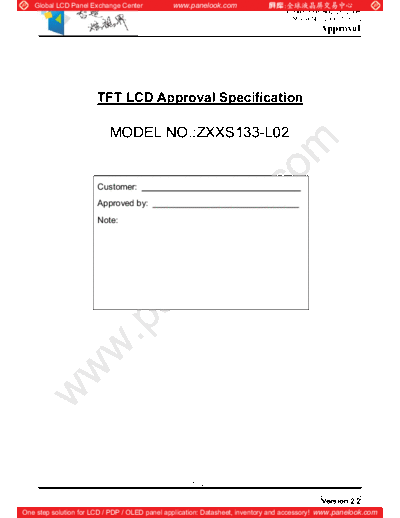

Image preview - the first page of the document
![Panel_ZHIXUAN_ZXXS133-L02_0_[DS]](/pics/5eb089e191683.gif)
>> Download Panel_ZHIXUAN_ZXXS133-L02_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Aug. 26, 2008
Model No.: ZXXS133-L02
Approval
TFT LCD Approval Specification
MODEL NO.:ZXXS133-L02
Customer:
Approved by:
Note:
1 / 27
Version 2.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Aug. 26, 2008
Model No.:ZXXS133-L02
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION ------------------------------------------------------- 4
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 11
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.4 COLOR DATA INPUT ASSIGNMENT
5.5 EDID DATA STRUCTURE
6. INTERFACE TIMING ------------------------------------------------------- 16
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 18
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PRECAUTIONS ------------------------------------------------------- 22
8.1 HANDLING PRECAUTIONS
8.2 STORAGE PRECAUTIONS
8.3 OPERATION PRECAUTIONS
9. PACKING ------------------------------------------------------- 23
9.1 CARTON
9.2 PALLET
10. DEFINITION OF LABELS ------------------------------------------------------- 25
10.1 CMO MODULE LABEL
10.2 CMO CARTON LABE
10.3 CUSTOMER CARTON LABEL
10.4 CUSTOMER PALLET LABEL
2 / 27
Version 2.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Aug. 26, 2008
Model No.: ZXXS133-L02
Approval
REVISION HISTORY
Page
Version Date Section Description
(New)
2.0 2007.08.16 All All Approval specification was first issued.
2.1 2008.04.28 5 2.1 Vibration (Non-operation) test condition from
5Hz, 100Hz, 200Hz, 1.47Grms X, Y, Z three axes (30min /axis) to
1.5G, 10~300Hz, 10min/cycle,3 cycles each X,Y,Z
2.1 2008.04.28 17 6.2 Contrast Ratio Modified, Typ. 500 -> 800
Min. 350 -> 550
2.2 2008.08.26 19 7.2 Optical Specification Modify note (5) measurement setup figure.
21 8.1 Add precaution of "Image sticking" in section 8.1 Assembly and
handling precautions
(11) Do not keep same pattern in a long period of time. It may cause
image sticking on LCD
3 / 27
Version 2.2
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Issued Date: Aug. 26, 2008
Model No.: ZXXS133-L02
Approval
1. GENERAL DESCRIPTION
1.1 OVERVIEW
ZXXS133 - L02 is a 13.3" TFT Liquid Crystal Display Rohs module and 20 pins LVDS interface. This module
supports 1280 x 800 WXGA mode and can display 262,144 colors. The optimum viewing angle is at 6
o'clock direction. The inverter module for Backlight is not built in.
1.2 FEATURES
- WXGA (1280 x 800 pixels) resolution
- DE only mode
- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock
- RoHs compliance
1.3 APPLICATION
- TFT LCD Panel
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 286.08 (H) x 178.8 (V) mm
(1)
Bezel Opening Area 289.1 (H) x 181.8 (V) mm
Driver Element a-si TFT active matrix - -
Pixel Number 1280 x R.G.B. x 800 pixel -
Pixel Pitch 0.2235 (H) x 0.2235 (V) mm -
Pixel Arrangement RGB vertical stripe - -
Display Colors 262,144 color -
Transmissive Mode Normally white - -
Surface Treatment AG , 25%Haze - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 298.5 299 299.5 mm
Module Size Vertical(V) 194.5 195 195.5 mm (1)
Depth(D) - 7.7 8.0 mm
Weight - 450 465 g -
I/F connector mounting position The mounting inclination of the connector makes the screen (2)
