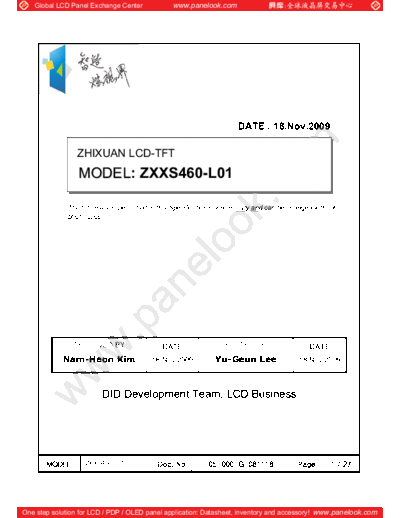

Image preview - the first page of the document
![Panel_ZHIXUAN_ZXXS460-L01_0_[DS]](/pics/5eb08be8793e0.gif)
>> Download Panel_ZHIXUAN_ZXXS460-L01_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
DATE : 18.Nov.2009
ZHIXUAN TFT-LCD
SAMSUNG LCD-TFT
MODEL: :ZXXS460-L01
MODEL L
The Information Described in this Specification is Preliminary and can be changed without
prior notice
DATE DATE
Nam-Heon Kim 18.Nov.2009 Yu-Geun Lee 18.Nov.2009
DID Development Team, LCD Business
ZXXS460-L01
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
Contents
Revision History -------------------------------------------------------------------------------------------- (3)
General Description --------------------------------------------------------------------------------------- (4)
General Information --------------------------------------------------------------------------------------- (4)
1. Absolute Maximum Ratings -------------------------------------------------------------------------- (5)
2. Application information for I.D. (Information Display) ------------------------------------------- (6)
3. Optical Characteristics --------------------------------------------------------------------------------- (7)
4. Electrical Characteristics ----------------------------------------------------------------------------- (10)
4.1 TFT LCD Module
4.2 Back Light Unit
4.3 Inverter Input & Specification
5. Input Terminal Pin Assignment --------------------------------------------------------------------- (13)
5.1 LVDS Connector
5.2 Inverter Input Pin Configuration
5.3 Inverter Input Power Sequence
5.4 LVDS Interface
5.5 Input Signals, Basic Display Colors and Gray Scale of Each Color
6. Interface Timing ---------------------------------------------------------------------------------------- (19)
6.1 Timing Parameters (DE only mode)
6.2 Timing Diagrams of interface Signal (DE only mode)
6.3 Power ON/OFF Sequence
7. Outline Dimension -------------------------------------------------------------------------------------- (22)
8. Packing --------------------------------------------------------------------------------------------------- (24)
9. Marking & Others --------------------------------------------------------------------------------------- (25)
10. General Precaution ----------------------------------------------------------------------------------- (26)
10.1 Handling
10.2 Storage
10.3 Operation
10.4 Operation Condition Guide
10.5 Others
ZXXS460-L01
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
* Revision History
Rev.
Date Page Summary
No
Nov
18, 000 all First issued
2009
ZXXS460-L01
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
General Description
Description
ZXXS460-L01 is a color active matrix liquid crystal display (LCD) that uses amorphous
silicon TFT(Thin Film Transistor) as switching components. This model is composed of a
TFT LCD panel, a driver circuit and a LED backlight unit. The resolution of a 46.0" is
1366 x 768 and this model can display up to 16.7 million colors with wide viewing angle of
89 or higher in all directions. This panel is intended to support applications to provide a
excellent performance for Flat Panel Display such as Home-alone Multimedia TFT-LCD
TV, Display terminals for AV application products, and Digital Information Display (DID).
Features
RoHS compliance (Pb-free)
High contrast ratio, High luminance
SPVA(Super Patterned Vertical Align) mode
Wide viewing angle ( 178 )
High speed response
Super narrow bezel, Black top chassis
Landscape / Portrait type compatible
WXGA (1366 x 768 pixels) resolution (16:9)
Low power consumption
Direct Type 2100 LEDs(light emitting diode)
DE(Data Enable) mode
LVDS (Low Voltage Differential Signaling) interface (1pixel/clock)
General Information
Items Specification Unit Note
1025.653(WTYP) x 579.844(HTYP) 1.0mm
Module Size mm
58.53(DMAX)
Weight 16,000(Max) g
Pixel Pitch 0.7455(H) x 0.7455(V) mm
Active Display Area 1018.353(H) x 572.544(V) mm
Surface Treatment Haze 5.5% , Hard-coating (3H)
Display Colors 8 bit - 16.7M colors
Number of Pixels 1920 x 1080 pixel
Pixel Arrangement RGB vertical stripe
Display Mode Normally Black
Luminance of White 800 (Typ.) nit
ZXXS460-L01
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
1. Absolute Maximum Ratings
If the condition exceeds maximum ratings, it can cause malfunction or unrecoverable
damage to the device.
Item Symbol Min. Max. Unit Note
Power Supply Voltage VDD GND-0.5 13.2 V (1)
Storage temperature TSTG -20 60 (2)
Glass surface Center TCENTER 0 50
temperature (2),(5)
(Operation) T. Uniformity T - 10
x,y - TBD
Shock ( non - operating ) Snop G (3)
z - TBD
Vibration ( non - operating ) Vnop - TBD G (4)
Note (1) Ta= 25 2 C
(2) Temperature and relative humidity range are shown in the figure below.
a. 90 % RH Max. (Ta 39 C)
b. Relative Humidity is 90% or less. (Ta > 39 C)
c. No condensation
(3) 11ms, sine wave, one time for X, Y, Z axis
(4) 10-300 Hz, Sweep rate 10min, 30min for X,Y,Z axis
Fig. Temperature and Relative humidity range
ZXXS460-L01
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
(5) Definition of test point
5mm
5mm
1 2
5
LCD Module (Active)
3 4
T should be less than 10 ( T = |TCENTER ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
