>> Download Jbl-EonMIX10 mix documenatation <<
Text preview - extract from the document

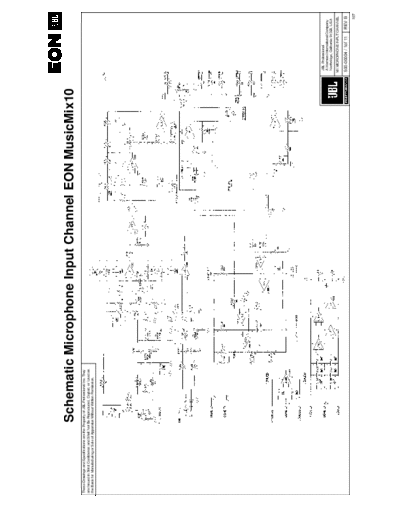

Schematic Microphone Input Channel EON MusicMix10
These Drawings and Specifications are the Property of JBL Professional Inc. They
are Issued in Strict Confidence and Shall Not Be Reproduced, Copied, or Used as
the Basis for Manufacturing or Sale of Apparatus Without Written Permission.
JBL Professional
A Harman International Company
Northridge, California 91329, USA
MI MICROPHONE INPUT CHANNEL
500-00004 / 1of 11 REV B
107
Schematic Microphone Input Channel EON MusicMix10
These Drawings and Specifications are the Property of JBL Professional Inc. They
are Issued in Strict Confidence and Shall Not Be Reproduced, Copied, or Used as
the Basis for Manufacturing or Sale of Apparatus Without Written Permission.
JBL Professional
A Harman International Company
Northridge, California 91329, USA
MI MICROPHONE INPUT CHANNEL
500-00004 / 2 of 11 REV B
108
Schematic Microphone Input Channel EON MusicMix10
These Drawings and Specifications are the Property of JBL Professional Inc. They
are Issued in Strict Confidence and Shall Not Be Reproduced, Copied, or Used as
the Basis for Manufacturing or Sale of Apparatus Without Written Permission.
JBL Professional
A Harman International Company
Northridge, California 91329, USA
MI MICROPHONE INPUT CHANNEL
500-00004 / 3 of 11 REV B
109
Schematic Microphone Input Channel EON MusicMix10
These Drawings and Specifications are the Property of JBL Professional Inc. They
are Issued in Strict Confidence and Shall Not Be Reproduced, Copied, or Used as
the Basis for Manufacturing or Sale of Apparatus Without Written Permission.
JBL Professional
A Harman International Company
Northridge, California 91329, USA
MI MICROPHONE INPUT CHANNEL
500-00004 / 4 of 11 REV B
110
Schematic Microphone Input Channel EON MusicMix10
These Drawings and Specifications are the Property of JBL Professional Inc. They
are Issued in Strict Confidence and Shall Not Be Reproduced, Copied, or Used as
the Basis for Manufacturing or Sale of Apparatus Without Written Permission.
JBL Professional
A Harman International Company
Northridge, California 91329, USA
MI MICROPHONE INPUT CHANNEL
500-00004 / 5 of 11 REV B
111
Schematic Microphone Input Channel EON MusicMix10
These Drawings and Specifications are the Property of JBL Professional Inc. They
are Issued in Strict Confidence and Shall Not Be Reproduced, Copied, or Used as
the Basis for Manufacturing or Sale of Apparatus Without Written Permission.
JBL Professional
A Harman International Company
Northridge, California 91329, USA
MI MICROPHONE INPUT CHANNEL
500-00004 / 6 of 11 REV B
112
Schematic Stereo Aux Input Channel EON MusicMix10
These Drawings and Specifications are the Property of JBL Professional Inc. They
are Issued in Strict Confidence and Shall Not Be Reproduced, Copied, or Used as
the Basis for Manufacturing or Sale of Apparatus Without Written Permission.
JBL Professional
A Harman International Company
Northridge, California 91329, USA
MI STEREO AUX INPUT CHANNEL
500-00004 / 7 of 11 REV B
113
Schematic Stereo Aux Input Channel EON MusicMix10
These Drawings and Specifications are the Property of JBL Professional Inc. They
are Issued in Strict Confidence and Shall Not Be Reproduced, Copied, or Used as
the Basis for Manufacturing or Sale of Apparatus Without Written Permission.
JBL Professional
A Harman International Company
Northridge, California 91329, USA
MI STEREO AUX INPUT CHANNEL
500-00004 / 8 of 11 REV B
114
Schematic Effects Return EON MusicMix10
These Drawings and Specifications are the Property of JBL Professional Inc. They
are Issued in Strict Confidence and Shall Not Be Reproduced, Copied, or Used as
the Basis for Manufacturing or Sale of Apparatus Without Written Permission.
JBL Professional
A Harman International Company
Northridge, California 91329, USA
MI EFFECTS RETURN
500-00004 / 9 of 11 REV B
115
Schematic Stereo Mix Output EON MusicMix10
These Drawings and Specifications are the Property of JBL Professional Inc. They
are Issued in Strict Confidence and Shall Not Be Reproduced, Copied, or Used as
the Basis for Manufacturing or Sale of Apparatus Without Written Permission.
JBL Professional
A Harman International Company
Northridge, California 91329, USA
MI STEREO MIX OUTPUT
500-00004 / 10 of 11 REV B
116
Schematic Monitor & Effects Output Phantom Power EON MusicMix10
These Drawings and Specifications are the Property of JBL Professional Inc. They
are Issued in Strict Confidence and Shall Not Be Reproduced, Copied, or Used as
the Basis for Manufacturing or Sale of Apparatus Without Written Permission.
JBL Professional
A Harman International Company
Northridge, California 91329, USA
MI MONITOR & EFFECTS
OUTPUTS & PHANTOM POWER
500-00004 / 11 of 11 REV B
117
Schematic AC Input Assembly EON MusicMix10
These Drawings and Specifications are the Property of JBL Professional Inc. They
are Issued in Strict Confidence and Shall Not Be Reproduced, Copied, or Used as
the Basis for Manufacturing or Sale of Apparatus Without Written Permission.
JBL Professional
A Harman International Company
Northridge, California 91329, USA
SCHEMATIC, AC INPUT
500-00003 REV A
118
PCB Amp and AC Input Assemblies EON MusicMix10
These Drawings and Specifications are the Property of JBL Professional Inc. They
are Issued in Strict Confidence and Shall Not Be Reproduced, Copied, or Used as
the Basis for Manufacturing or Sale of Apparatus Without Written Permission.
JBL Professional
A Harman International Company
Northridge, California 91329, USA
513-00013 REV A
513-00011 REV G
119
