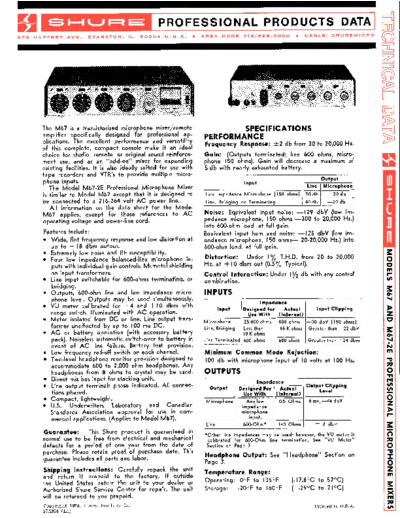

Image preview - the first page of the document
>> Download m67_ug documenatation <<
Text preview - extract from the document
AVE., 312/328-9000
222 HARTREY EVANSTON, IL. 60204 U.S.A. AREA CODE CABLE: SHUREMICRO
(S;
The M 6 7 i s a transistorized microphone mixer/remote SPECIFICATIONS
amplifier specifically designed f o r professional ap-
PERFORMANCE
plications. The excellent performance and versatility
Frequency Response: 1-2 db from 30 t o 20,000 Hz.
of this complete, compact console make it an ideal
choice f o r studio, remote, or original sound reinforce- Gain: (Outputs terminated; line 600 ohms, rnicro-
ment use, and as an "add-on" mixer for expanding phone 150 ohms). Gain will decrease a maximum o f
existing facilities. It is also ideally suited f o r use with 5 db with nearly exhausted battery.
tape recorders and VTR's t o provide multiple micro-
phone inputs.
The Model M67-2E Professional Microphone Mixer -
-
Input
I Line I ~i;rophone
is similar t o M o d e l M 6 7 except t h a t it is designed t o Low lmoedance M i c r o ~ h o n e1150 ohms) 90 d b 1
/ - 30-
'
-d b
be connected t o a 216-264 volt AC power line.
All information on the data sheet for the M o d e l
Line, Bridging or Terminating 140db 1 -20db
M 6 7 applies, except for those references t o AC Noise: Equivalent input noise: -129 dbV (low im-
operating voltage and power-line cord. pedance microphone, 150 ohms -300 t o 20,000 Hz.)
into 600-ohm load, a t full gain.
Features include: Equivalent input hum and noise: -125 dbV (low im-
W i d e , flat frequency response and low distortion a t pedance microphone, 150 ohms- 20-20,000 Hz.) into
up t o $ 18 d b m output. 600-ohm load, a t full gain.
Extremely low noise and RF susceptibility.
Distortion: Under 1 % T.H.D. from 20 t o 20,000
Four low impedance balanced-line microphone in-
puts with individual gain controls. Mumetal shielding Hz. a t + I 0 d b m out (0.5% Typical).
on input transformers. Control Interaction: Under 1 % - db with any control
.
Line input switchable for 600-ohms terminating, or com bination.
bridging.
Outputs, 600-ohm line and low impedance micro- INPUTS
phone level. Outputs may be used simultaneously.
VU meter calibrated f o r +4 and +
I 0 d b m with
Input d-1
Impedance
for ~ctual I Input Clipping
range switch. Illuminated with AC operation.
Meter isolated from D C on line. Line output trans-
-30 dbV (150 ohms)
former unaffected b y up t o I 0 0 ma DC.
- Greater than +22 dbV
AC or battery operation (with accessory battery
I z: OWK;~: I
1
<
pack). Noiseless automatic switch-over t o battery in Line.Terminated 600 ohms Greater than +24 dbm
event o f AC line failure. Battery test provision.
Low frequency roll-off switch on each channel. Minimum Common Mode Rejection:
Two-level headphone monitor provision designed t o 100 db with microphone input o f I 0 volts a t I 0 0 Hz.
accommodate 600 t o 2,000 ohm headphones. A n y
headphones from 8 ohms t o crystal may be used. OUTPUTS
Direct mix bus input for stacking units.
Impedance
Line output terminals phase indicated. All connec- Output Clipping
Output Designed For Actual
tions phased. Level
Use With (Internal)
Compact, lightweight. Microphone Any low 0.5 Ohms 6 rnv, - 4 4 dbV
U.S. Underwriters Laboratory and Canadian impedance
Standards Association approval f o r use i n com- microphone
mercial applications. (Applies t o M o d e l M67).
Line
Guarantee: This Shure product is guaranteed in
*Other line impedances may be used; however, the V U meter is
normal use t o be free from electrical and mechanical calibrated for 600-Ohm line termination. See "VU Meter"
defects for a period o f one year from the date of Section on Page 3.
purchase. Please retain proof o f purchase date. This
Headphone Output: See "Headphone" Section on
guarantee includes all parts and labor.
Page 3.
Shipping Instructions: Carefully repack the unit Temperature Range:
and return it prepaid t o the factory. If outside
Operating: O◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
